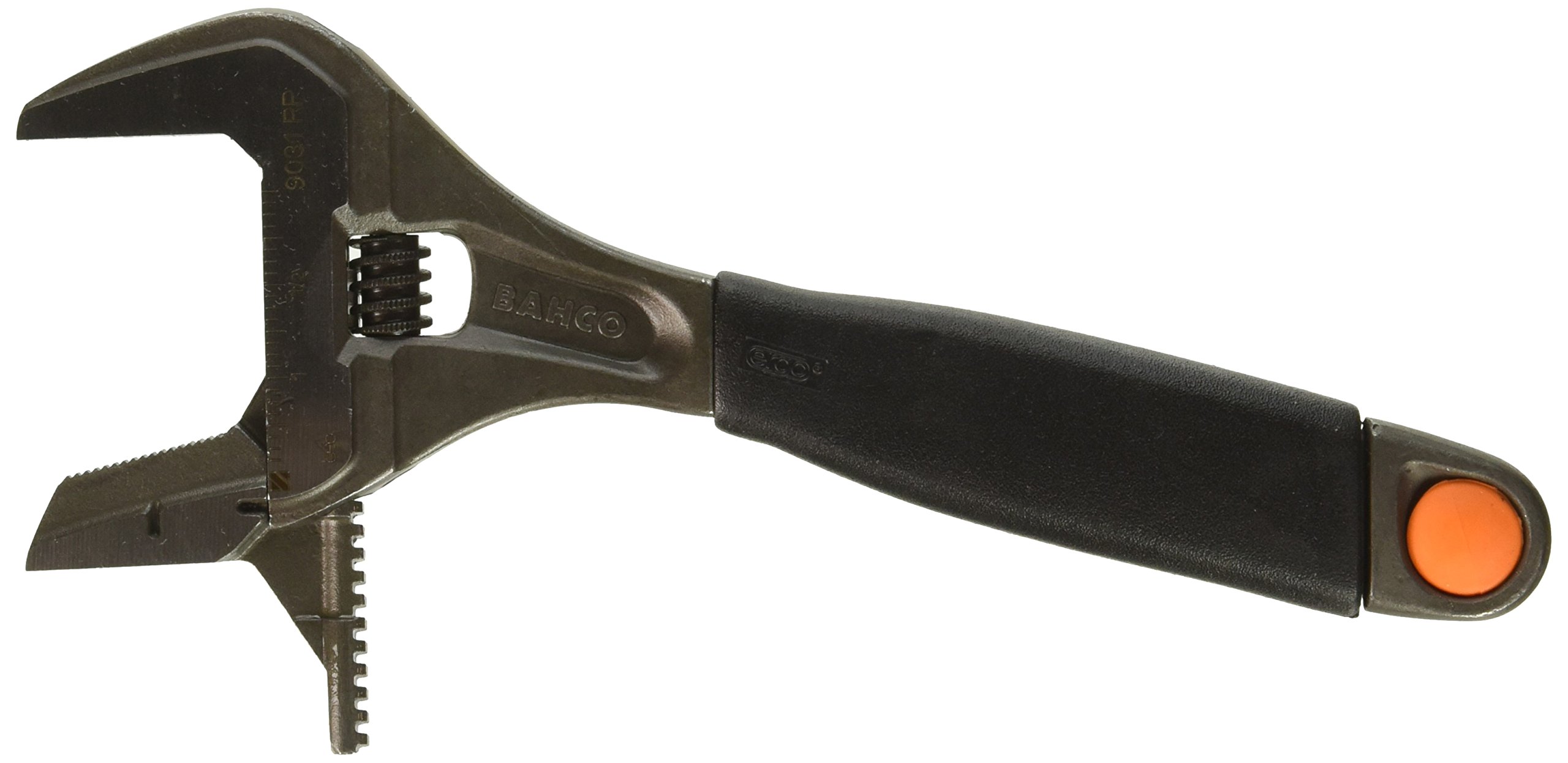

Bahco 9031 R US Adjustable Wrench: Fit a 38 mm Jaw into an 8-Inch Tool

An adjustable wrench usually forces a size tradeoff: the larger the nut it can span, the longer and heavier the tool becomes. That is awkward inside a cabinet, beside a pump, or behind equipment where the fastener is broad but swing room is scarce. The Bahco 9031 R US addresses that mismatch with a documented 38 mm maximum opening in a body that is only 218 mm, or 8 inches, long. It is a standard smooth-jaw adjustable wrench, not a pipe wrench or a push-button plier, and its value comes from fitting a relatively wide fastener without moving up to a typical 10- or 12-inch handle.

Why 38 mm in an 8-inch wrench matters

The main buying reason is simple: capacity and reach are packaged differently here. Bahco specifies a 38 mm maximum jaw opening, while the short 218 mm handle is easier to place where a longer wrench would hit a wall, cabinet floor, nearby hose, or adjacent fitting. That combination suits maintenance work that mixes ordinary nuts with occasional larger flats but does not provide generous handle clearance.

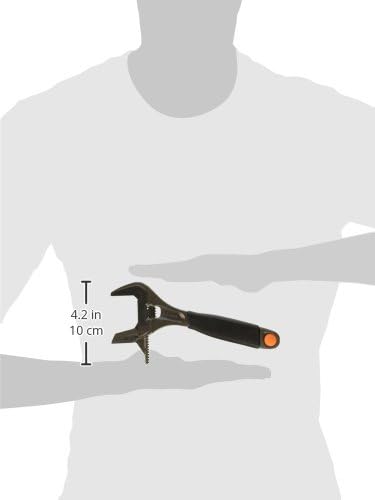

The laser-marked millimeter scale helps set the movable jaw close to a known fastener size before the tool goes into a cramped area. It is a positioning aid, not a substitute for closing the jaws firmly onto the flats. The 38 mm figure is also a maximum opening, not a torque rating, a guaranteed pipe diameter, or permission to overload an 8-inch tool. Buyers who mainly need greater leverage should still choose by the job's torque demand rather than jaw capacity alone.

A slim head helps the wide opening reach the fastener

Capacity matters only if the head can enter the work. Bahco lists a 5 mm jaw thickness, 13.4 mm head thickness, and 34 mm jaw height for the standard 9031. Those measurements distinguish the width of each gripping jaw from the overall thickness and height of the head; they should not be treated as interchangeable dimensions.

The relatively slim head is the second buying reason. It can approach fastener flats in spaces where a bulkier adjustable head may be the real obstruction, while the smooth jaws avoid the deliberate tooth marks of a pipe wrench. The central nut uses a left-turning adjustment screw, and Bahco says the movable jaw is retained so it will not fall out. At 340 g, this is not an ultralight pocket wrench, but its weight reflects a one-piece forged alloy-steel body rather than an oversized handle.

The handle and finish favor repeated shop work

Bahco's ERGO rubber handle is designed to give the hand a broader, cushioned contact surface, and the manufacturer specifies resistance to oil and Skydrol. That is useful around machinery and service work where a bare metal handle can become unpleasant or slippery. It does not make the tool electrically insulated: Bahco does not publish a live-work rating for this model.

The forged high-performance alloy steel is precision hardened and treated with a phosphate finish for corrosion resistance. Phosphate is a practical shop finish, but it is not corrosion-proof; wiping the wrench clean and dry remains sensible after wet or dirty work. The tool is made to ISO 6787, DIN 3117, ASME B107.8, and BS6333 dimensional standards, which supports the published identity and dimensions without promising a specific torque limit.

Know exactly which 9031 you are buying

This review covers the phosphate-finish 9031 R US with the standard 5 mm jaw. It is not the 9031-T thin-jaw version, the 9031 C or RC US chrome-finish version, or the 9031P reversible-jaw model intended to add pipe-gripping behavior. Those alternatives solve different problems, so a similar silhouette or shared 9031 name is not enough to confirm the variant.

Choose this standard 9031 when a 38 mm opening, short handle, slim smooth-jaw head, and oil-resistant cushioned grip solve the actual access problem. Skip it if the job requires certified electrical insulation, serrated pipe grip, an extra-thin jaw, chrome finish, ratcheting action, or more leverage than an 8-inch wrench can provide. Its strongest case is not that it replaces every wrench; it is that it places unusually broad smooth-jaw capacity in a compact, clearly specified tool.
