Crescent Wiss M3R Aviation Snips: Straight Cuts and Slight Curves in 18-Gauge Steel

A straight line on sheet metal rarely fails all at once. The cut begins on the layout mark, then the offcut crowds the handles, the sheet flexes, and the blades start steering a few millimeters away. Buying the right snip is partly about capacity, but it is also about whether the tool can correct that path without pretending to be a tight-radius left- or right-cut model.

This article covers the exact Crescent Wiss M3R matched to UPC 037103580214 and Amazon child ASIN B00002N5KQ. It is not the red-handle M1R, green-handle M2R, an offset M6R or M7R, a three-piece M123R set, or a powered shear.

One yellow pair handles straight cuts and slight course changes

Crescent specifies the M3R for straight cuts plus slight left and right curves. That combination is useful when a long HVAC patch, flashing strip or siding cut is mostly straight but needs a gentle correction around a layout mark.

The word “slight” matters. The M3R does not replace the M1R for sustained left curves or the M2R for sustained right curves. A tight radius asks the blades, handles and waste side to turn more aggressively; forcing that turn can twist the sheet, stall the cut or pull the tool off the line. Use the M3R for broad changes in direction and switch to the directional model when the path becomes the defining part of the job.

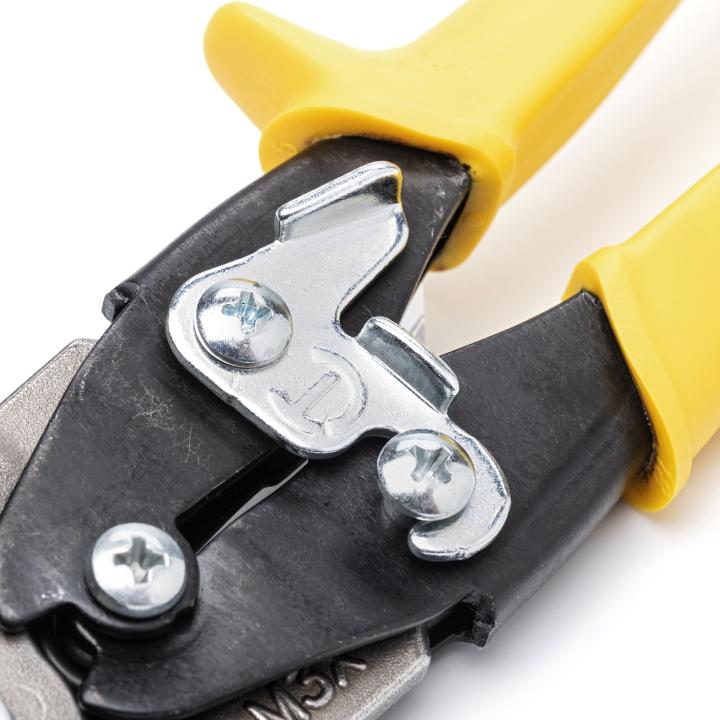

Compound action, spring return and the latch shape the hand cycle

The compound linkage multiplies handle movement at the blades, while the spring reopens the handles after each squeeze. On a run that takes many short bites, that return action removes the need to pull the handles apart manually. Crescent also places the latch for one-handed operation by either left- or right-handed users, so the tool can be opened or secured without turning it around.

Crescent says this generation requires 20% less cutting force on average than its previous-generation Wiss snips. That is a manufacturer comparison, not a promise that every cut will feel 20% easier than every competing tool. Sheet thickness, material, cut direction, blade engagement and the amount of waste curling beside the tool all change the effort at the hand. The practical buying benefit is the combination of compound action and automatic return, not an isolated percentage.

Serrated blades trade a clean hold for realistic edge expectations

The M3R uses precision-cast blades with ground serrations. Those teeth help keep compatible sheet from sliding forward as the blades close, which supports control when following a visible line. The official blade length is 1.5 inches, but usable progress per squeeze depends on how deeply the sheet can enter without binding or deforming the offcut.

Serrations can leave a more textured cut edge than smooth shears, so this is a control-oriented fabrication tool rather than a promise of a finish-ready edge. Keep the sheet fully supported, avoid starting with only the blade tips, and leave enough allowance for deburring or final fitting where the finished edge will remain exposed. Freshly cut sheet and curled offcuts are sharp; eye and hand protection still matter even when the handles feel secure.

Match the steel limit, cut path and access before buying

Crescent rates the M3R for low-carbon rolled steel up to 18 gauge. That material phrase is part of the limit: it should not be silently extended to stainless steel, hardened wire, mesh, aluminum of an assumed equivalent gauge or layered assemblies. Gauge numbers are material-dependent, so verify both composition and thickness rather than buying from the number alone.

The tool measures 9.75 inches long, 1.115 inches wide and 3.1 inches high, with a catalog weight of 1.00 pound. That full-size body gives the compound mechanism room to work, but a lighter or offset snip may fit better overhead, close to a wall or inside formed duct. The M3R is made for cuts where the handles can follow behind the blades; it does not move the hand above the sheet like an offset pattern.

Choose the M3R when most of the job is straight, occasional corrections are gentle and the stock is documented low-carbon rolled steel no thicker than 18 gauge. Buy dedicated left- or right-cut snips when curves are frequent or tight, and an offset model when hand clearance drives the decision. The M3R earns its place by covering the middle ground honestly: one yellow-handled tool for straight progress with limited steering, not one snip for every sheet-metal path.
