Daxiongmao C30 16.5ft Endoscope: Screen-Based Live View

Something has disappeared behind a cabinet, but moving the whole unit is a bigger job than taking a look. The black Daxiongmao C30-16.5FT puts a small camera on a long cable and sends the view to its own handheld screen. It is intended for looking into otherwise awkward spaces, not for making the opening or doing the repair.

The most important buying distinction comes before cable length: this version shows a live picture but cannot save photos or videos. It suits an immediate question such as whether a small object is visible in a reachable gap. Choose a recording-capable model instead when the result needs to be shared, documented, or compared later.

Keep the phone out of the viewing setup

The 4.3-inch color LCD is built into the unit. There is no smartphone connection, Wi-Fi setup, or driver app to arrange before using the basic live view. That gives the camera a self-contained role in a toolbox, rather than turning a phone into one more item to hold and keep clean.

The tradeoff is that looking and documenting are different tasks. A screen image is not a stored file. Someone who needs pictures for a repair quotation or a dated inspection record should not buy this particular version expecting a software download to add recording. Decide whether seeing the answer now is enough before considering its other conveniences.

Plan for the camera tip, not just the cable length

The selected kit has a 16.5-foot semi-rigid cable and an 8 mm camera head. The cable can be shaped for positioning, but length alone does not tell you whether it will navigate a particular route. The head, cable bend, and usable opening all matter. A long cable is not a guarantee that it can travel around every tight corner.

Daxiongmao gives an observation distance of roughly 1.5 to 5 inches. Think about where the tip can actually sit relative to the object, rather than simply whether the opening is deep. A camera pressed against a surface may not deliver the useful view you expected. For a prospective buyer, access and viewing distance deserve more attention than a resolution label.

Use light and viewing angle as separate adjustments

Eight adjustable LEDs surround the camera. They provide illumination where a room light or flashlight cannot easily reach. The included side mirror serves a different purpose: redirecting the view toward the side rather than adding a second camera. A mirror attachment should not be mistaken for a dual-lens system.

The hook and magnet are separate included accessories. They may help with a suitable small object after it has been located, but the kit does not establish that every item can be recovered. Avoid pushing harder to force a path. A visual aid is useful precisely when it helps decide the next appropriate step, including stopping and getting qualified help.

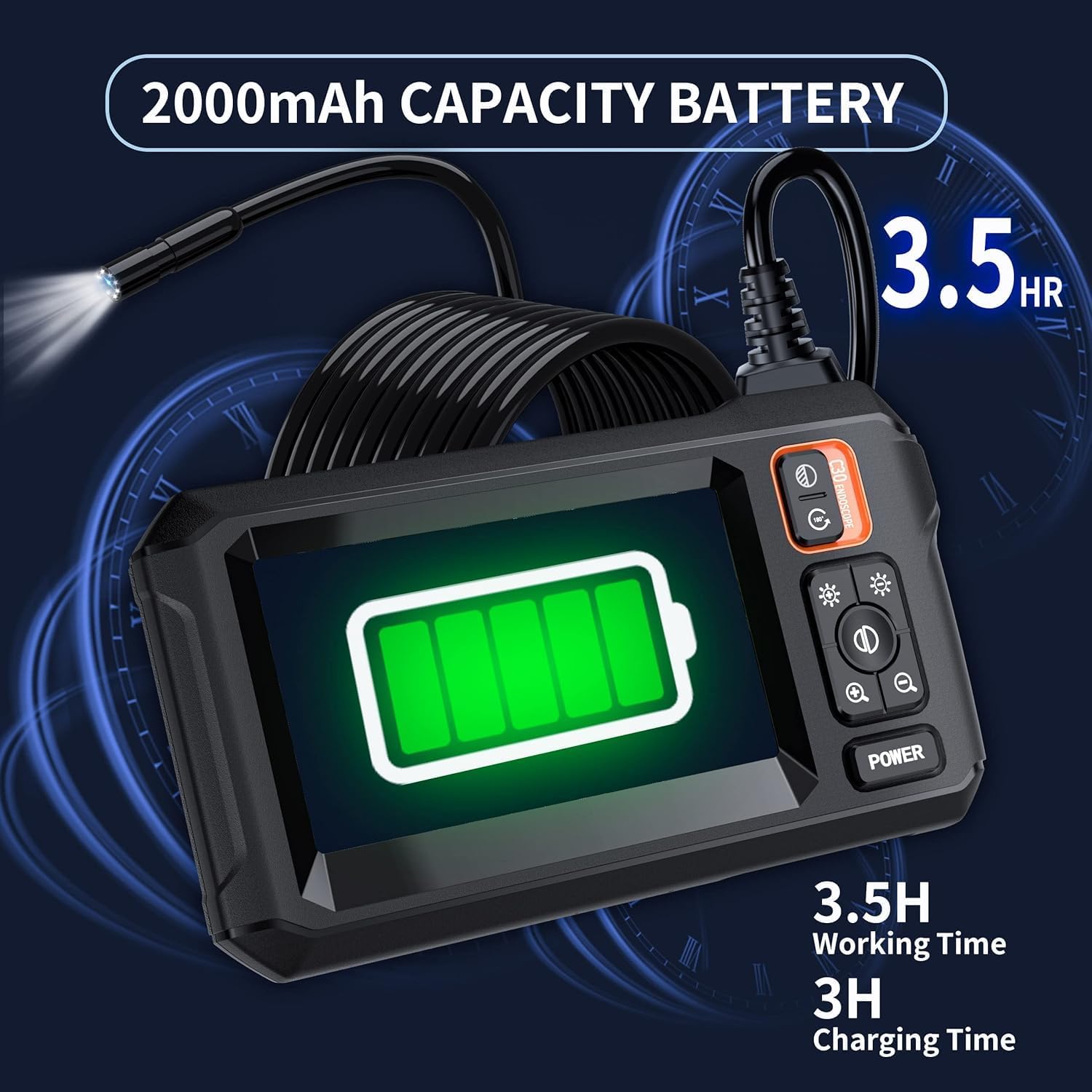

Charge it before the next look

A rechargeable screen still needs preparation. The selected product instructions call for a suitable 5 V, 1 A household charger and explicitly say that fast charging is not supported. A Type-C charging cable is included; do not treat the connector shape as permission to disregard those charging instructions.

The seller describes IP67 protection for the snake-camera probe and connector. That is not a reason to immerse the display, use the unit in energized equipment, or treat it as a medical instrument. For maintenance, isolate equipment safely and follow its instructions; this camera cannot certify that a hidden area is safe.

Choose this C30 kit for occasional live checks where its small head can reach a useful viewing position and a separate screen would simplify handling. Skip it when stored evidence, a controlled steerable tip, or professional diagnostic capability is essential. Those are different requirements, not problems solved merely by adding more cable.
