ENGINEER SS-03 Solder Sucker: A Flexible Tip at the Joint

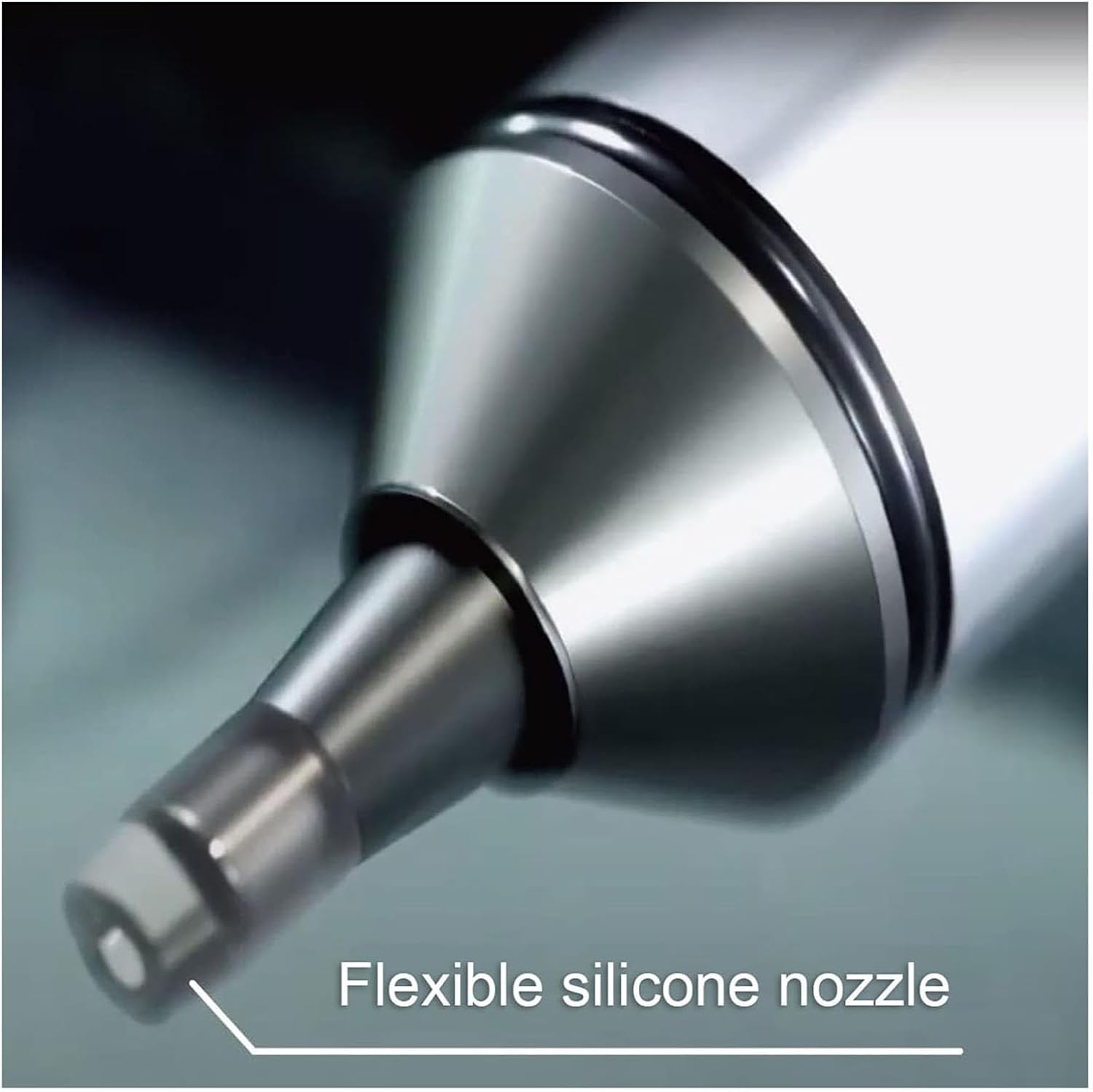

Solder around a component lead has to be melted before a suction pump can remove it. The ENGINEER SS-03 handles the suction part, using a flexible silicone tip at the joint. That tip is the main attraction: it gives the pump a yielding contact surface where the soldering iron and nozzle need to work close together.

A softer contact at the solder joint

ENGINEER describes the elastic nozzle as covering the soldering point and fitting against the board. For someone removing leaded components or working around connectors, that makes the contact end worth considering alongside the pump itself. The manufacturer lists both as intended uses. The tube can yield at the contact point as you bring the nozzle alongside the iron.

The nozzle has a stated heat resistance of 350°C. ENGINEER permits direct contact with an iron tip within that limit, which is relevant when positioning the two tools together. The figure applies to the nozzle; it is not an instruction to set the iron to 350°C or leave the silicone against it indefinitely. Choose the iron temperature for the actual soldering work while respecting the nozzle's limit.

One hand operates the pump, leaving the other available for the separate iron. That is the scope of ENGINEER's one-handed description. You still coordinate melting the solder and bringing the nozzle to it; this is not a combined heated desoldering tool. The single SS-03 includes neither the iron nor a board holder.

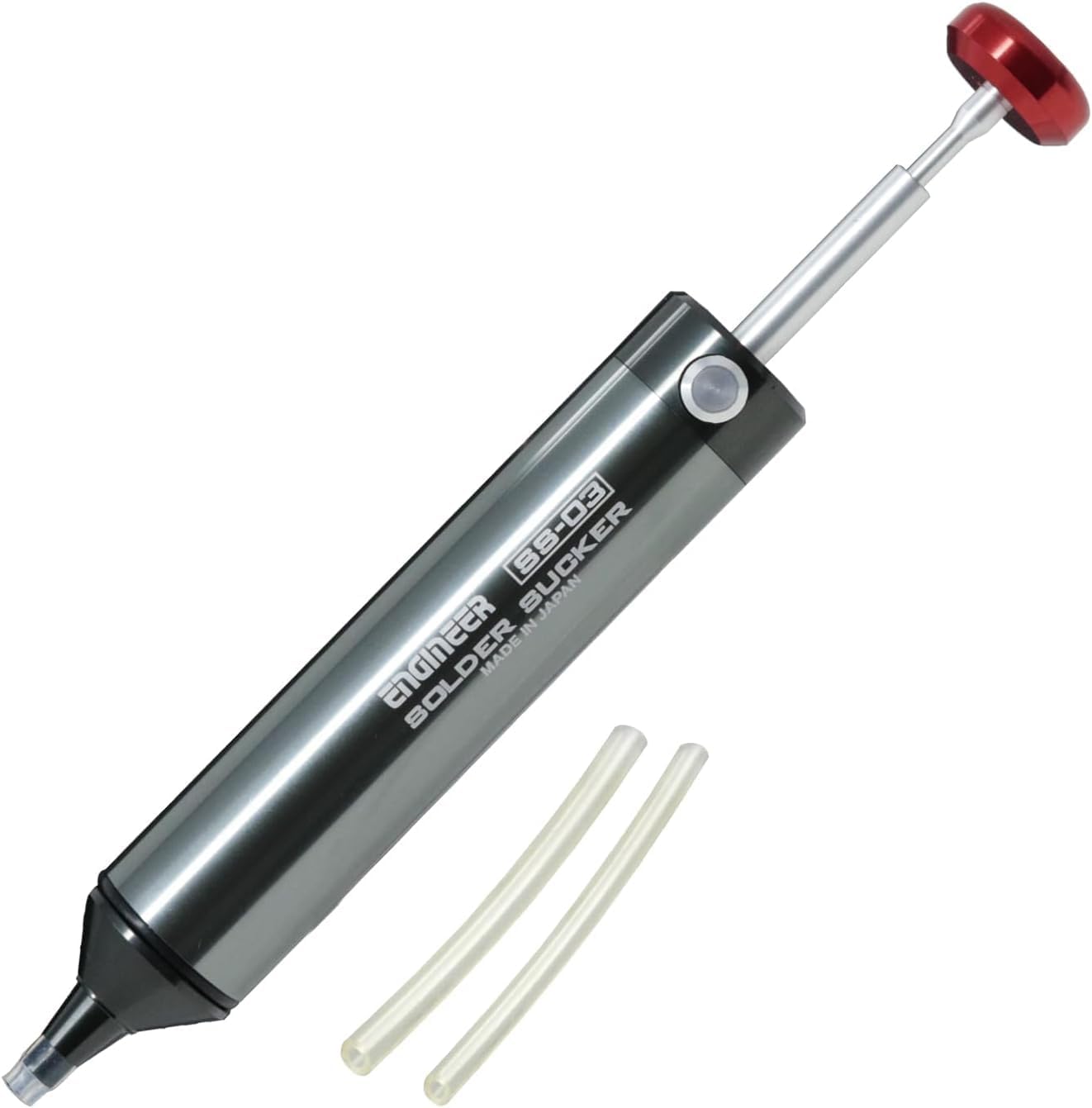

Two spare tube sizes in the box

The included spares are two 50 mm silicone tubes with different dimensions. One has a 1.5 mm inner diameter and 3 mm outer diameter; the other has a 2 mm inner diameter and 4 mm outer diameter. Those correspond to SS-17 and SS-16, respectively. The package contains one of each, not two of each size.

Having both gives you two tip openings to consider for the joints you encounter. The outside diameter also matters when judging space around nearby parts. A smaller opening is not automatically the better choice for every joint, and the larger opening is not a promise of stronger suction. Compare the tube's physical fit with the work in front of you.

ENGINEER sells replacement tubes separately, and its SS-16 instructions allow cutting a desired length. The replaceable tip is a concrete maintenance benefit: wear at that silicone contact surface need not mean discarding an otherwise serviceable pump. Keep the tube dimensions with your supplies so the next purchase matches the tip you intend to replace.

Open the cylinder to clear collected solder

The SS-03 has an aluminum body, with a listed diameter of 20 mm. ENGINEER gives the overall tool length as 153 mm and weight as 48 g. These give a sense of the hand tool you will be positioning beside the iron. Its 9 ml specification describes cylinder volume, not suction pressure or a guaranteed amount of solder removed from a joint.

ENGINEER describes a feature that ejects solder residue from the tip to help prevent clogging. Collected material still has to be cleared from inside. The maker's maintenance illustration shows the front end being unscrewed, the spring removed and the cylinder interior wiped with a cloth. Access to that space is the benefit; an anti-clog feature does not make cleanup disappear.

The practical question is whether you want to manage suction and heat separately. Someone already using an iron can add this pump at the joint without buying a combined heated tool. If you want heating built into the desoldering tool, the SS-03 will not provide that.

After the job, clearing the cylinder and checking the silicone tip address different parts of the tool. Internal access lets you remove collected material; a replaceable nozzle lets you deal with a worn contact end. Keep the two spare sizes identifiable so you can return to the opening that fits your work.
