Franklin Sensors M210 Stud Finder: Edges and Center Together

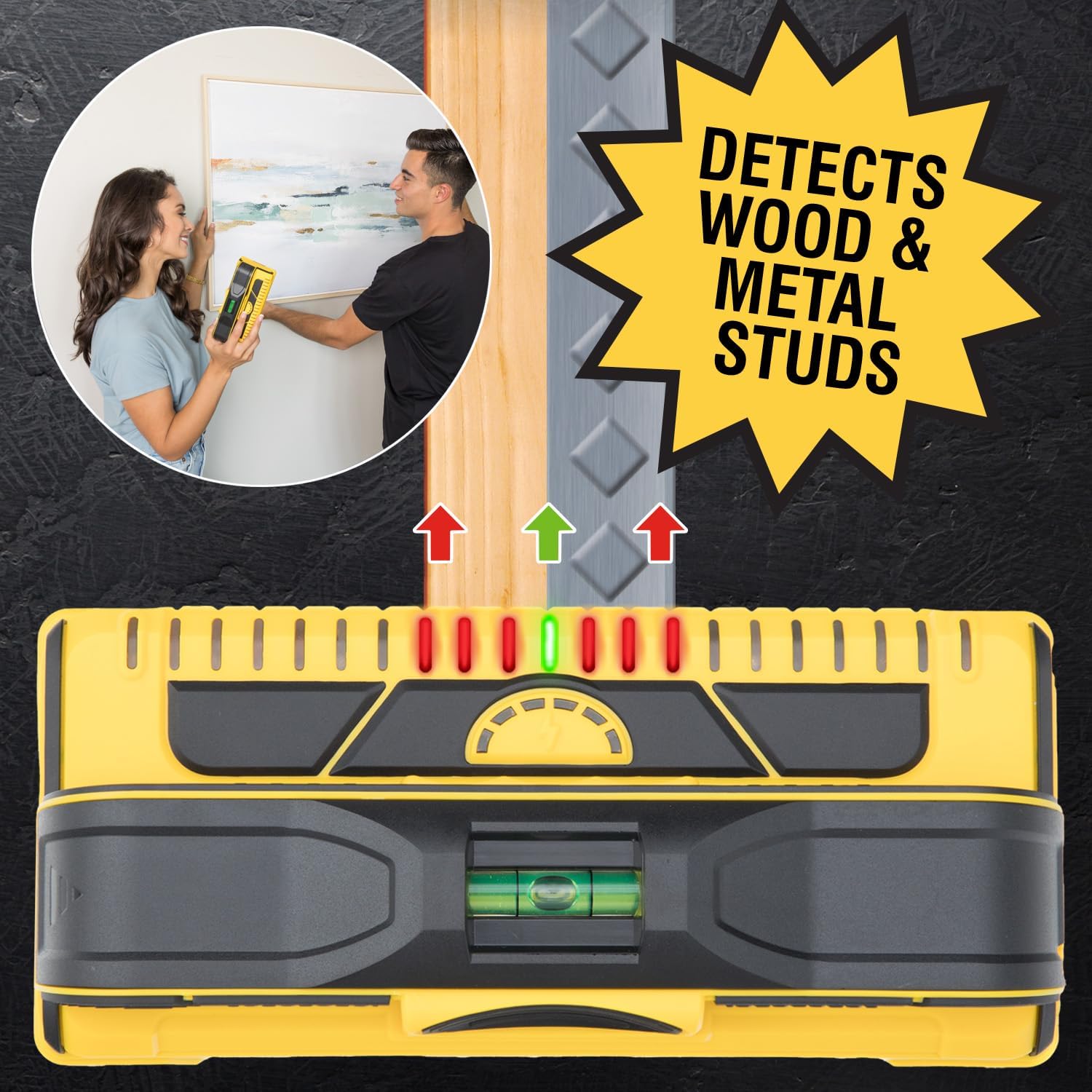

When planning a shelf's position, it helps to know where a stud starts and ends. The Franklin Sensors ProSensor M210 puts that width on a row of lights. Its 13 sensors feed a 21-LED display that tracks edges and center together, giving you a spatial reference while deciding where a wall-mounted item should sit.

A bubble level and pencil caddy address the next task: marking the position. The separate live-wire meter adds an electrical warning cue during the scan. These features have different jobs, with the width display providing the main reason to consider this yellow-and-black finder.

See the width as you move across the wall

Press and hold the button, keeping your fingers on the handle, and move the finder across a clean, dry wall. Franklin specifies no calibration step; the button can be pressed on or off the wall. The LEDs follow the detected area as you scan. You can begin a check without first hunting for an empty starting area, a useful detail when the intended position is already close to framing.

Having the edges and center visible together gives you a reference for placing a mark within that span. The display can also show double studs and wider configurations, which may matter when the framing does not resemble one narrow, isolated stud.

A broad solid area needs care, however. The manual explains that all sensors over similar density can leave the LEDs unlit, as may happen around headers near doors and windows. An unlit display does not establish that the wall cavity is empty.

Keep a level reference and pencil nearby

Once you have located likely framing, you still need to relate that position to the item being mounted. The built-in bubble level gives you a level reference at the finder. The molded pencil caddy provides a place to keep a marking pencil between checks.

That combination is useful when a layout involves several positions. You can keep a pencil with the tool while moving between the scan and the marks, and consult the bubble without fetching a separate level for that local reference. The manual describes sliding the pencil out of its holder when needed.

For a longer shelf, use the alignment tools and measurements required by the mounting plan; the small bubble provides a local reference at the finder. Have two AA batteries ready, too. They are not included.

Read the wire meter as a warning cue

The semicircular meter above the grip has a separate purpose from the row of stud lights. While you hold the button, its yellow segments respond to detected electrical-signal strength. This adds a warning cue during the same scan, alongside the density information.

Franklin says the meter is optimized for live wires on or near studs. It may miss live wires, and a quiet meter does not mean a location is safe to drill. Follow the manual's instruction to turn off electrical power, gas and water before penetrating a surface, along with the other precautions the work requires.

Match the 1.7-inch rating to the wall

Franklin specifies detection up to 1.7 inches. That is a stated limit, not guaranteed performance through every wall. Uneven plaster thickness can exceed the useful range; metal mesh in plaster can prevent detection. The instructions also withhold a detection guarantee for variable tile, roofing and exterior materials.

The LEDs respond to changes in density. Pipes, wires and surface irregularities can produce readings, and the tool does not identify which kind of object caused them. This is a poor fit for a job that requires identifying each object or locating every utility line.

The M210 earns consideration for the spatial readout and the marking aids beside it. For a shelf layout, their useful role is helping you record likely framing positions and relate them to your plan. Check that plan and the wall's construction before turning a row of lights into a drilling decision.
