GEARWRENCH GWMBS39XPS MicroDriver Set: Turn Fasteners with a 3° Swing Arc

Sometimes the fastener is plainly visible, yet the handle can move only a finger's width before it meets a panel, bracket or housing. A conventional ratchet may fit over the fastener but still need too much return travel to advance it. The GEARWRENCH GWMBS39XPS builds its buying case around reducing both the swing space and the height of the tool stack.

This article covers the exact 39-piece, 1/4-inch-drive GWMBS39XPS set matched to UPC 099575835391 and Amazon child ASIN B0D96R49GS. It is not the older 35-piece 85035 set, an impact socket kit, or a large general mechanics assortment intended to supply every drive size.

A 3° swing arc keeps work moving in a narrow pocket

GEARWRENCH specifies a 120-tooth mechanism that turns a fastener with a 3° swing arc. In practice, that specification matters when the handle cannot travel far enough to engage a coarser ratchet on every return stroke. Small movements can keep advancing a dashboard screw, equipment-panel fastener or other lightly loaded connection without repeatedly removing and repositioning the tool.

The included ratchet is a 1/4-inch-drive, quick-release design with a slim head. GEARWRENCH lists the head at 0.38 inch thick and the handle at 7 inches long. Those dimensions describe the ratchet itself, not the total height once a socket, adapter or bit is installed. Before buying for one especially tight location, allow for the chosen attachment and the fastener head rather than relying on the ratchet thickness alone.

Nine locking positions change the approach angle

A push button locks the flex head into nine positions, and the head can also operate unlocked. This lets the handle clear an obstacle while the drive stays aligned with a recessed or offset fastener. The advantage is not merely comfort: changing the approach angle can be what allows a hand to grip and move the ratchet without scraping the adjacent trim or hardware.

Flexibility still requires control. Lock the head before applying deliberate torque when a fixed angle is safer, keep the socket fully seated, and avoid using the jointed head as a substitute for correct alignment. The set is for hand fastening. AutoZone's exact GWMBS39XPS listing marks it as not impact rated, so an impact driver or powered impact wrench is outside the documented use case.

Stubby sockets, extensions and a universal joint cover different obstacles

The set includes six SAE stubby sockets from 1/4 to 9/16 inch and five metric sockets from 8 to 14mm, all with 6-point profiles. GEARWRENCH describes an off-corner-loading design intended to reduce fastener rounding. Stubby bodies reduce tool height when the obstruction is above the fastener; the 2-inch and 6-inch extensions help when the obstruction is around it. A universal joint adds angular access when a straight drive path is unavailable.

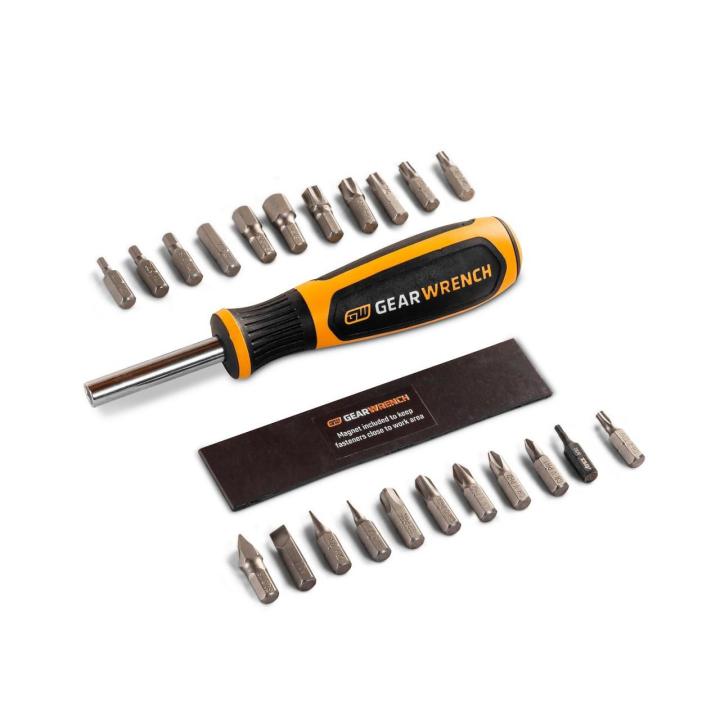

There are also 22 bits: seven SAE hex, six Torx, five Phillips because #2 is supplied twice, and four slotted sizes. That is a focused selection for common interior, maintenance and equipment fasteners, not a promise that every vehicle or appliance profile is included. Confirm the exact fastener, especially where security Torx, metric hex or specialty profiles may appear.

The compact case is useful only if the assortment matches the job

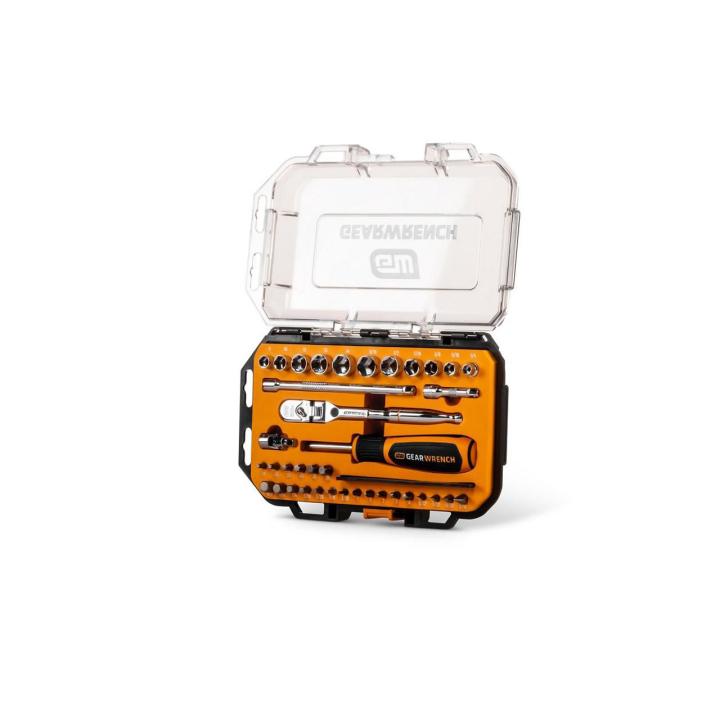

GEARWRENCH stores the marked tools in a foam base under a clear-top case and includes a magnetic strip for keeping small fasteners near the work area. The full set weighs 2.25 pounds in the catalog, compact enough to serve as a dedicated interior or service kit without emptying a full-size socket drawer at each job.

Choose the GWMBS39XPS when limited swing, adjustable handle angle and low overall tool height regularly block ordinary hand tools. Skip it when the work needs impact-rated hardware, sockets beyond 9/16 inch or 14mm, larger drive sizes, or high breakaway torque. Its value comes from controlled access to compatible small fasteners, not from replacing a complete mechanics set.
