Tamiya 74112 Fine Pin Vise Turns Smoothly for Precise Model Holes

A pin-sized hole in a miniature hand, aircraft panel, or plastic bracket rarely needs the speed of a power drill. It needs a bit to start where you placed it and advance without jumping across the surface. The Tamiya 74112 Fine Pin Vise D-R is built for that slower job: hold the capped end against your palm, turn the body with your fingers, and let hand pressure determine the pace.

This is the black-grip 0.1–3.2mm model sold as item 74112. It is a precise manual holder, not a drill-bit kit or a miniature motor tool. Its value comes from controlled rotation and a wide clamping range in one compact handle.

The bearing cap separates pressure from rotation

Tamiya builds a ball bearing into the end of the handle. The cap can stay planted against your palm while your fingers rotate the main body, so the pressure hand does not have to twist through every turn. The manufacturer describes the result as smooth, consistent rotation, and an independent hobby-tool review also found the bearing firm and smooth.

That arrangement is useful when a hole must begin on a small marked point. Start with light pressure, check that the bit is centered, and turn steadily. Because there is no motor, you control both speed and feed by feel. That can help around thin model parts, but it does not make the tool slip-proof: a starter dimple and a stable workpiece still matter.

Four collet ranges cover bits from 0.1 to 3.2mm

Inside the chuck system are two reversible collets, providing four stated clamping ranges: 0.1–1.0, 1.1–2.0, 2.0–2.5, and 2.5–3.2mm. That span lets one handle move from very fine pilot holes to larger openings used for pins, rods, or model modifications.

Changing between some sizes means unscrewing the nose, removing a collet, and flipping or swapping it. This is more deliberate than a keyless chuck, but it keeps the handle slim and gives small bits an appropriately sized grip. Seat the bit straight and tighten only enough to hold it securely. At the 3.2mm upper limit, the independent review notes that fit can feel tight, so buyers who work at that size constantly may prefer a larger dedicated chuck.

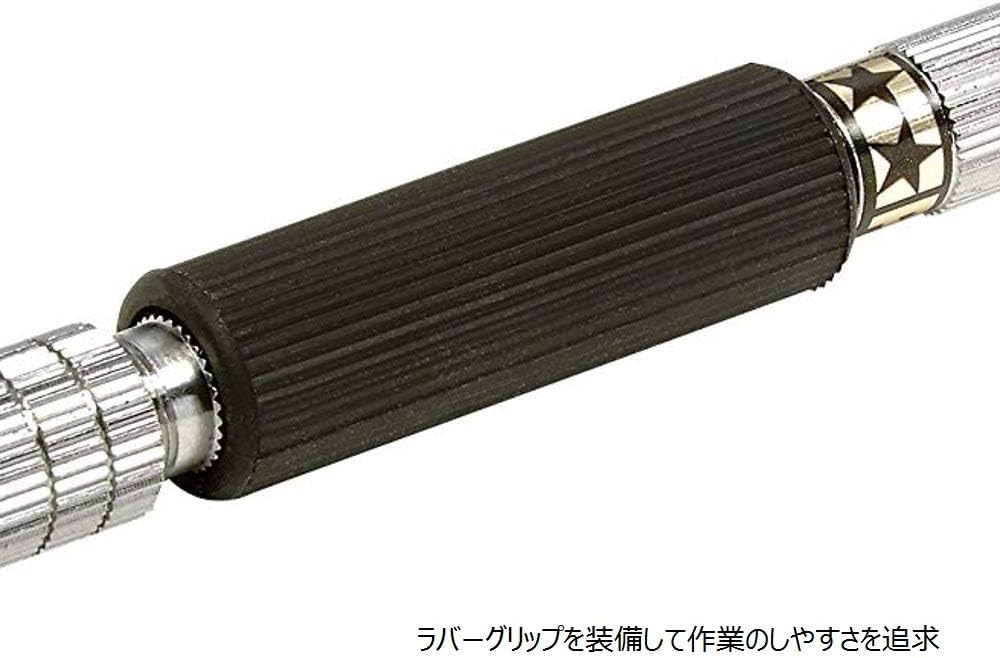

The rubber grip gives fingertips a defined turning surface

A ribbed elastomer sleeve covers the center of the nickel-plated brass body. The texture gives the turning fingers a clear place to work instead of asking them to pinch polished metal. That matters during a row of repeated holes, when consistent finger placement is more useful than extra speed.

The grip does not create mechanical leverage like a T-handle, and the tool is still meant for measured hand drilling. Dense material, large holes, or jobs that demand fast chip removal belong to a different drill. For model parts and other delicate craft work, the narrow body is the point: it keeps the bit, fingers, and work area close together.

Budget for bits and for slower, careful work

The 74112 is sold as the pin vise only; drill bits are not included. If you are starting from an empty bench, add the sizes your project actually uses rather than treating the handle price as the whole setup. Keep fragile micro bits supported close to the work, clear debris often, and wear suitable eye protection.

This tool also costs more than many bundled pin-vises that arrive with assorted bits. The case for paying more is not quantity in the box. It is the combination of a comfortable rubber center, a bearing-supported cap, and one chuck system spanning tiny through medium hobby bits. Choose it when controlled manual drilling is a recurring part of model building. Choose a less expensive kit when occasional holes and an included bit assortment matter more than the handle itself.
