TP-Link Archer AX21 V5: AX1800 Wi-Fi 6, EasyMesh, 5 Gigabit Ports

The TP-Link Archer AX21 V5 is a dual-band Wi-Fi 6 router for buyers who want a straightforward upgrade from an older AC-class router without paying for multi-gig Ethernet or Wi-Fi 6E/7 hardware. This article covers Amazon US child ASIN B08H8ZLKKK and the current Archer AX21 V5 hardware family, not earlier AX21 revisions whose port layouts and feature lists can differ.

The core value proposition is simple: AX1800-class Wi-Fi 6, five Gigabit Ethernet ports, EasyMesh support, WPA3, and app-based setup at a mainstream price. The tradeoff is equally important: the V5 hardware is still a Gigabit-class wired router, so it is not designed for internet service above 1 Gbps or for buyers who need 2.5GbE.

AX1800 is a combined Wi-Fi rating, not a 1.8 Gbps internet promise

TP-Link rates the Archer AX21 V5 at 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Those two theoretical wireless link rates are added together for the AX1800 class name. They do not mean one laptop will download from the internet at 1.8 Gbps.

That distinction matters because the V5 uses one Gigabit WAN port. Even with a fast Wi-Fi 6 client, your internet path still runs through a 1 Gbps Ethernet WAN connection. The AX21 makes more sense for cable or fiber plans at or below the Gigabit tier than for a new multi-gig service.

Within that class, Wi-Fi 6 features are useful. TP-Link lists OFDMA, four streams, Airtime Fairness, beamforming, and four fixed high-performance antennas. These are tools for handling multiple clients more efficiently and directing signal toward connected devices, not a guarantee that every room will receive the same speed.

Five Gigabit Ethernet ports keep wired devices simple

The V5 hardware has one Gigabit WAN port and four Gigabit LAN ports. That gives you four wired outputs for devices such as a desktop PC, game console, TV, NAS, or unmanaged switch without needing an immediate add-on switch.

This is also where version checking matters. Older Archer AX21 pages can mention a USB 2.0 port, but TP-Link’s current V5/V5.6 datasheet lists the Gigabit WAN/LAN ports and does not list USB storage. Buyers who specifically want a router-hosted USB drive should not assume an older revision’s feature sheet applies to B08H8ZLKKK V5.

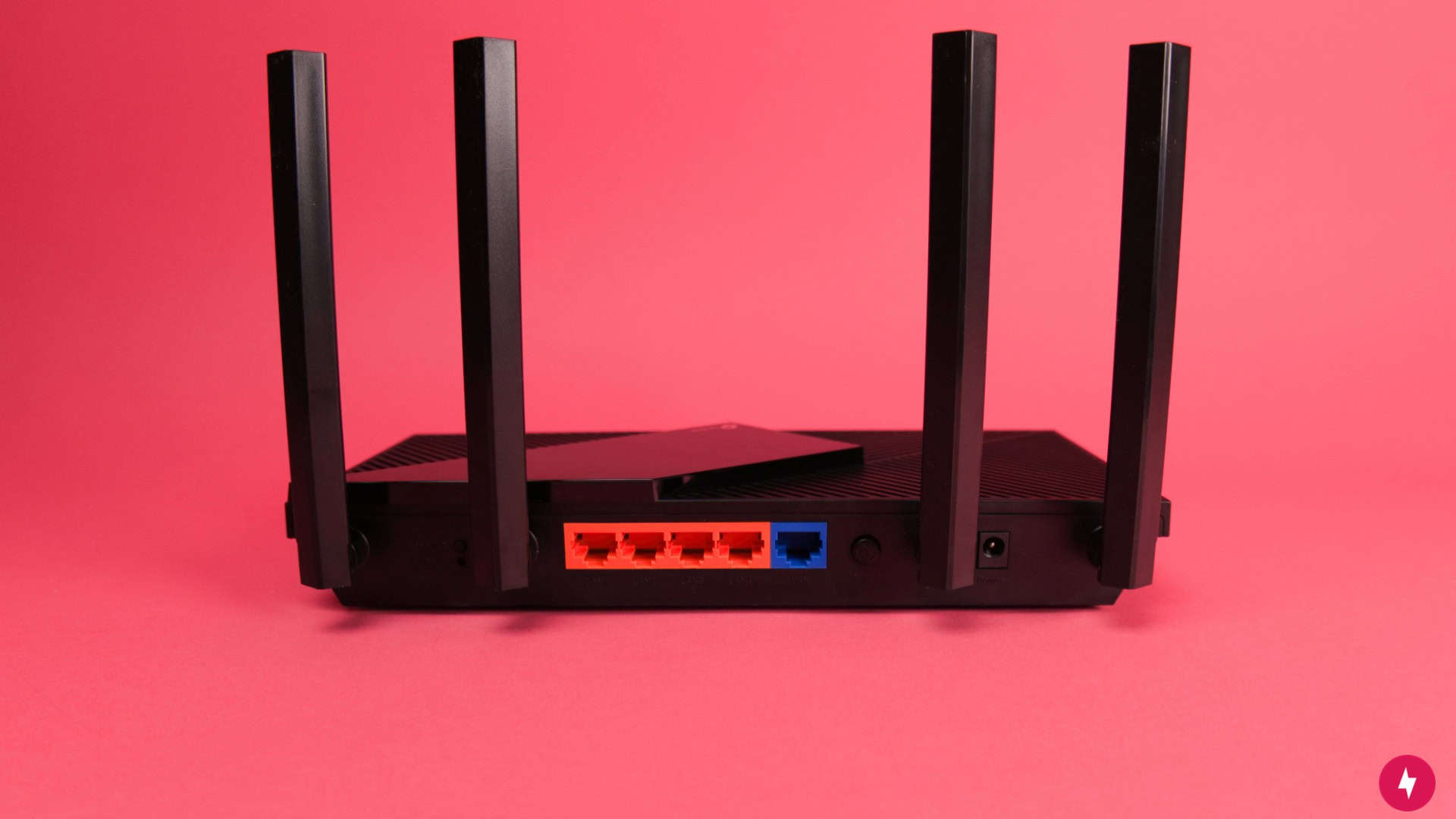

The rear layout is conventional and easy to understand: blue WAN, four LAN ports, reset, WPS/Wi-Fi control, power switch, and power input. There is no 2.5GbE port, so wired expansion remains firmly in the Gigabit tier.

EasyMesh is the practical path to broader coverage

TP-Link lists EasyMesh support on the current V5 hardware. If a single router leaves weak areas, you can add another EasyMesh-compatible device instead of replacing the router immediately. The goal is one network name with supported mesh behavior rather than a separate extender network you have to manage manually.

The AX21 can also operate in Router Mode or Access Point Mode. Access Point Mode is useful if another gateway already handles routing and you only need Wi-Fi from the AX21.

Coverage still depends on building layout, wall materials, interference, client radios, and placement. TP-Link describes the AX21 as suitable for a typical multi-room home and combines four antennas with beamforming, but that should be treated as a deployment guide rather than a guaranteed square-foot figure.

WPA3, Tether, and VPN support add useful flexibility

TP-Link supports WPA3 alongside WPA/WPA2 options, plus guest networks and common firewall/access-control functions. Setup and routine management can be handled with the TP-Link Tether app or the web interface.

The current V5.6 datasheet also lists VPN server and client support for WireGuard, OpenVPN, PPTP, and L2TP. That is a useful extra for buyers who want router-level VPN options without moving to a more specialized small-business device.

Choose B08H8ZLKKK if you want a value-focused Wi-Fi 6 router with four wired LAN ports, EasyMesh expansion, WPA3, and simple app management for a Gigabit-or-slower internet plan. Skip it if you need 2.5GbE, USB storage on the current V5 hardware, Wi-Fi 6E/7, or the performance headroom of a higher-end router.

The Archer AX21 V5 works best when the limitations match the job: modernize an older home network, keep several devices wired, and leave an EasyMesh upgrade path without paying for interfaces your current internet service cannot use.
