Crescent Lufkin W606PM Diameter Tape: Measure From the Outside

A round part can be awkward to measure across when its center is hidden or there is no convenient place to set a ruler. The Crescent Lufkin W606PM approaches that problem from the outside: its wraparound tape carries separate circumference and diameter markings. Its purpose is to read a round object without reaching across the center, rather than replace a general-purpose tape.

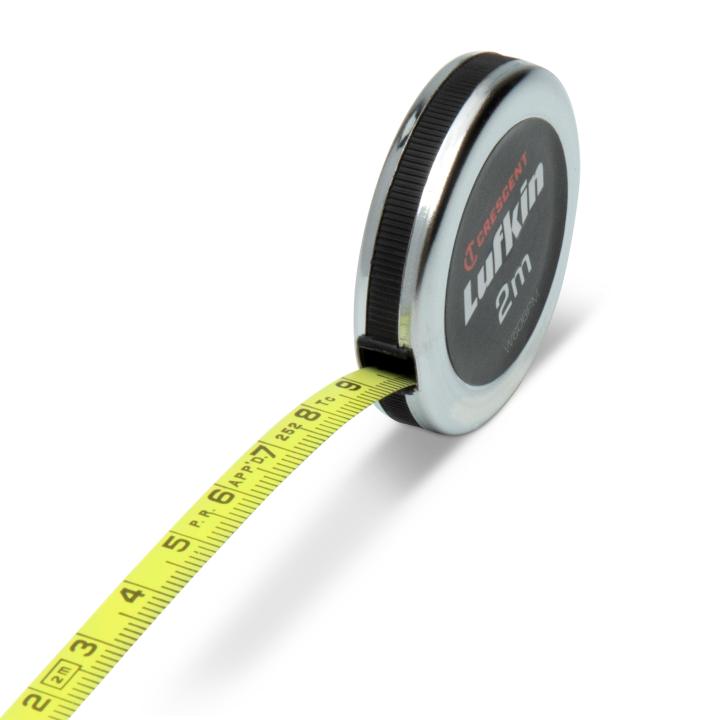

This is the metric W606PM, with a 2 m long, 6 mm wide blade. That model detail deserves attention before ordering because the Executive family also contains similar-looking inch-based versions.

A different reading from the same wrap

Ordinary circumference tells you the distance around a circular object. Diameter tells you the distance across its center. For a circle, dividing circumference by pi converts one to the other; the W606PM's paired scales put that relationship on the blade rather than leaving every conversion to a calculator.

That is helpful when your question is the outside diameter of an accessible round part rather than its overall length. You can work around the outside without needing a clear view through the middle. It is less useful when you cannot reach around the object at all: the format changes the reading, not the access required.

Read the scale intended for the measurement you need. A number taken from the circumference side should not be copied into a diameter field. Keeping those two quantities distinct matters more than assuming that every marking on a small tape serves the same purpose.

Order the metric model, not a similar case

Check W606PM on the listing and package, together with the 2 m metric specification. Crescent lists W606PD separately as an SAE model with a 6 ft blade. Similar product names and metal cases are not evidence that their graduations are interchangeable.

Choose according to the units you actually record. A workshop sheet written in millimeters gives the metric version a clearer purpose; an inch-based workflow calls for a separate check of the appropriate variant. Do not buy one version expecting it to remove every unit-conversion step in the other workflow.

The 2 m figure describes blade length, not a promise to measure objects with a 2 m diameter. For a circle, the wrap must span its circumference, which is larger than its diameter. Check the usable measurement range for the intended object rather than treating the label as a diameter-capacity rating.

Compact, but not a hands-free measuring setup

Crescent specifies a metal case, spring return and no blade lock. The first two features make sense for a small tool that is put away between checks; the last is a practical difference from a tape that stays extended behind a thumb lock. Plan to control the tape while taking a reading rather than expecting it to hold an arbitrary extension by itself.

A narrow blade also deserves deliberate placement. Keep the wrap level and untwisted, with the measuring surface clean enough that debris does not become part of the measurement. A diagonal path or a loop around a projecting fitting answers a different dimensional question from a wrap around the intended surface.

These considerations favor repeated checks where access and positioning are straightforward. The compact format is convenient to carry, but it does not establish an accuracy guarantee. Crescent also lists a California Proposition 65 warning concerning cancer and reproductive harm; review the product warning before use.

Outside diameter is only one part of fit

An outside wrap does not directly give a pipe's internal opening or wall thickness. Nor should a circumference-based reading be treated as proof that a distorted part is perfectly round. Those questions need their own measurements, not confidence borrowed from a clear scale.

Consider the W606PM when accessible round parts and metric records recur in your work. The direct diameter scale saves a separate calculation, while the small spring-return case makes the tool easy to put away between checks. For one occasional check, a suitable flexible measure and a calculation may already suffice. Keep a general-purpose tape for longer layout work and choose a different measuring method when internal dimensions or a specified inspection tolerance are the actual requirement.
