THE BUYING TAKE
Choose the NEIKO 01407A when one compact tool needs to check common small-part dimensions and switch among decimal inches, fractions and millimeters; skip it when the work requires a range beyond 6 inches, a published environmental rating, certified traceability or micrometer-level control.
The NEIKO 01407A combines outside, inside, depth and step measurement with inch, fractional-inch and millimeter readouts in a stainless-steel 6-inch caliper; it is a practical bench tool for DIY fit checks, but it is not a substitute for traceable inspection or a micrometer.
We may earn a commission from these links, at no extra cost to you. As an Amazon Associate I earn from qualifying purchases.

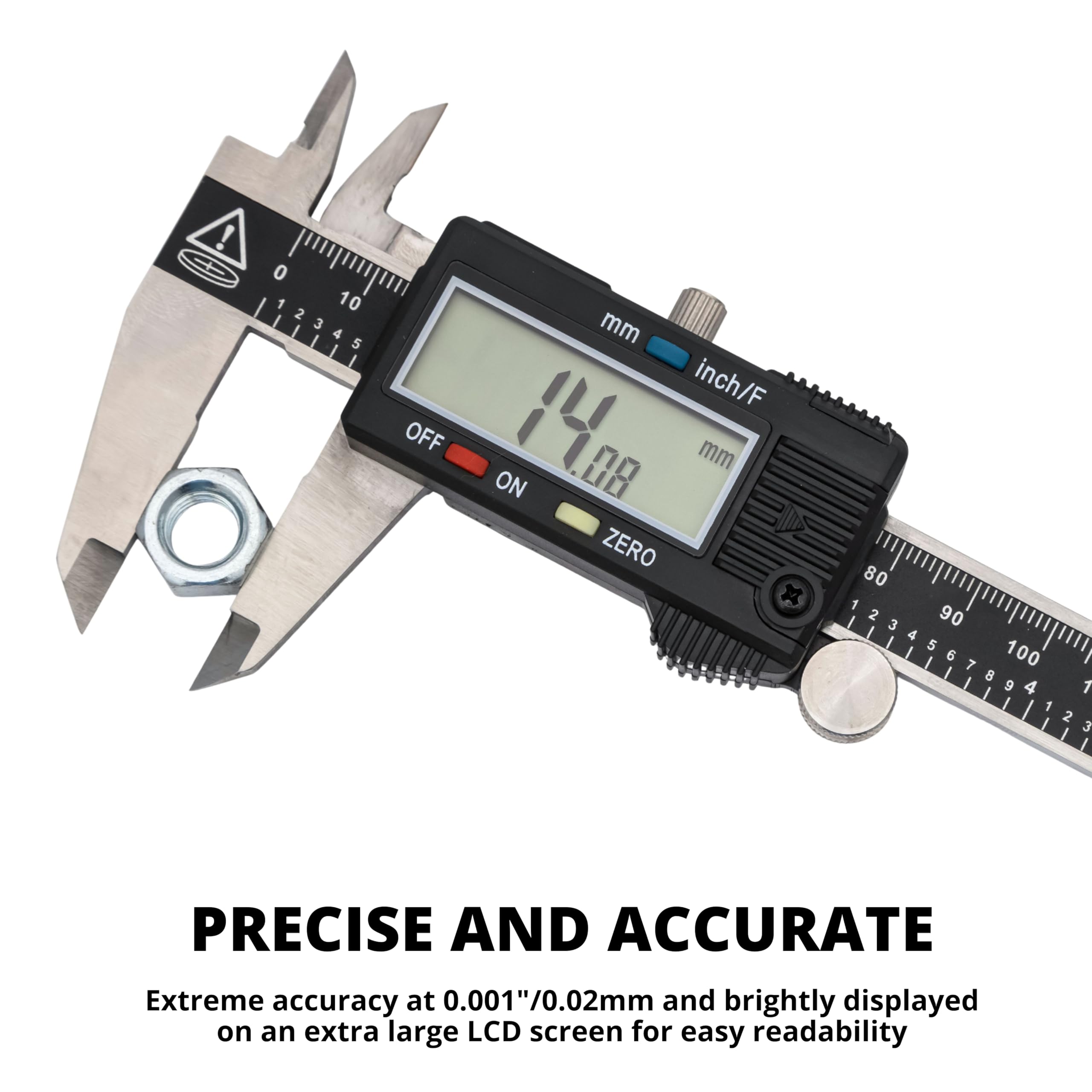

NEIKO 01407A
Check current price and availability with the retailer.
A bolt can look right and still bind in a hole; a printed part can miss its mating piece by a fraction of a millimeter; a drill bit can be hard to identify once its markings fade. Those are jobs where a ruler leaves too much uncertainty. The NEIKO 01407A puts four common caliper measurements and three display units into one 0–6 inch tool, so a small part can be checked without swapping gauges or doing a conversion in your head.
This is the stainless-steel 01407A, not NEIKO's plastic 01417A or a larger 8- or 12-inch model. Its published range is 0–6 inches / 0–150 mm, with display resolution of 0.0005 inch, 1/128 inch or 0.01 mm and listed accuracy of ±0.001 inch / ±0.02 mm. Those numbers describe the exact model, but good technique still decides whether a reading is useful.
Different measuring faces let the same caliper check both a part and the space it must fit. The large lower jaws check outside width, thickness and shaft diameter. The smaller upper jaws expand inside a hole or slot. A thin blade extends from the beam for depth, while the rear faces can compare a shoulder or step. Walmart's exact-model listing documents all four functions, and the product controls include a thumb roller and locking screw for positioning.
That combination is useful when a project has related dimensions: verify a bolt's shank, the opening it must pass through, and the depth available for its head without reaching for three separate tools. The zero button can also establish a reference at any position, which makes relative comparisons easier—for example, checking how far one printed wall differs from another. A caliper does not identify the cause of a mismatch, but it replaces visual guessing with a repeatable number.
The inch/fraction/millimeter button is useful when a drawing and the part in your hand use different units. Decimal inches suit mechanical drawings, millimeters fit CAD and many imported parts, and reduced fractions are convenient when matching ordinary hardware or woodworking dimensions. Switching the display preserves the same physical measurement while changing how it is expressed.
Fraction mode is helpful, but it is not a substitute for judgment. Its finest displayed step is 1/128 inch; it cannot be told to round every result to a preferred denominator such as 1/16 or 1/32. Machinist Guides also found the mixed-size digits slightly unusual at first. Buyers who only need rough fraction checks may be satisfied with a simple ruler, while anyone moving between plans, parts and fasteners gains more from the three-mode display.
The polished stainless frame is more rigid than a basic plastic caliper, and the large LCD avoids reading a fine engraved vernier scale. The thumb roller helps approach a surface gradually; the lock can hold the slider while the display is read away from an awkward position. A molded case protects the jaws in storage, and the package includes an extra LR44 button cell.
An independent Machinist Guides review measured gauge blocks across the tool's range and reported results within the manufacturer's stated accuracy. That is useful evidence for ordinary shop checks, not a calibration certificate. The same review noted reports of short battery life or unintended power-on and had to replace a depleted supplied cell. Keeping a spare battery in the case is sensible if the tool is used away from the bench.
Before a measurement, wipe the jaws, close them gently and confirm zero. Keep the jaws square to the part and use consistent light pressure; squeezing a flexible print, tilting inside jaws or rocking the depth blade can create a convincing but wrong number. Repeat the reading at more than one point when roundness, taper or surface texture matters. Display resolution is not a promise that every user, surface and temperature will deliver that level of real-world certainty.
Choose the 01407A for fit checks, hardware identification and comparative work on parts within 6 inches. Choose a longer caliper for larger spans, a sealed tool for wet or gritty environments, or a calibrated micrometer and documented inspection process when tolerances, traceability or safety decisions demand more than a general-purpose digital caliper.
We may earn a commission from these links, at no extra cost to you. As an Amazon Associate I earn from qualifying purchases.
NEIKO 01407A
Check current price and availability with the retailer.

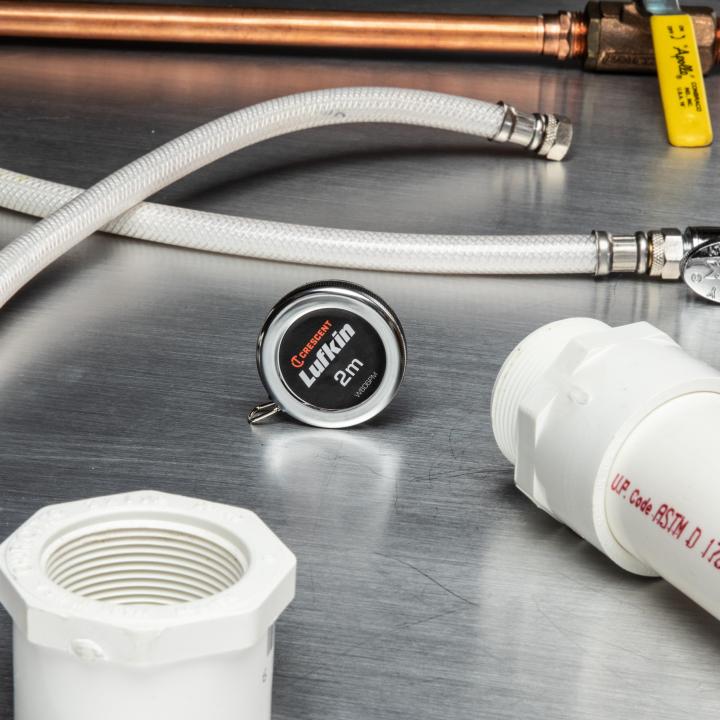

A two-sided metric diameter tape offers a practical alternative to measuring across a round part. Check the exact model, units and lack of a blade lock before buying.
