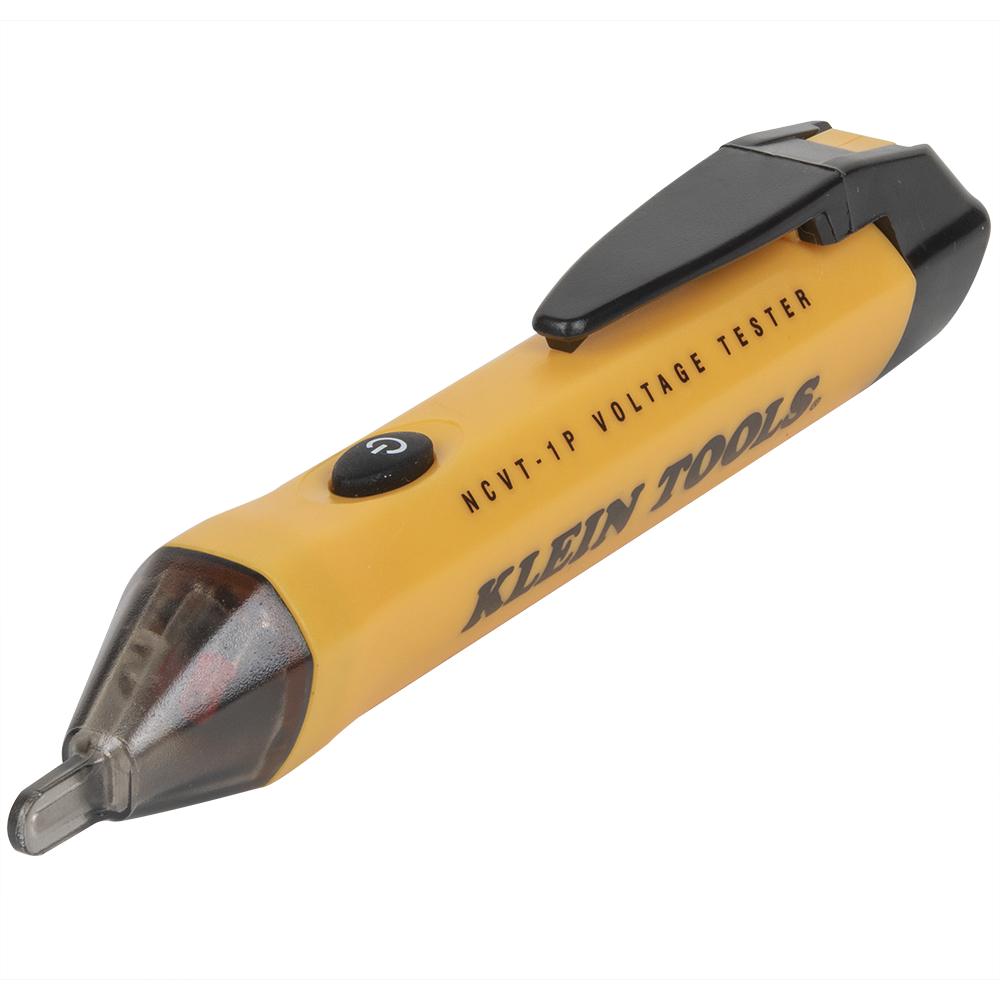

Klein Tools NCVT1P Non-Contact Voltage Tester: A Clear First Check

A non-contact tester is useful because it can flag an energized AC field before you touch a conductor—not because it can certify that a circuit is safe. The Klein Tools NCVT1P keeps that first check simple: green means the tester is on, while red light and an audible tone indicate detected voltage. That separation is the strongest reason to choose this basic pen over a model with less obvious operating feedback.

The exact NCVT1P covers 50 to 1000V AC and carries a CAT IV 1000V rating. It is a focused screening tool, not a multimeter and not a substitute for the procedure required to establish an electrically safe work condition.

Green for Ready, Red and Sound for Detection

When the NCVT1P powers on, its bright green LED confirms battery sufficiency, system integrity, and active operation. Bring the tip near an AC source within range and the indication changes: the red LED illuminates and the tester produces a continuous high-pitched beep. Those two states make it easier to distinguish “the tester is running” from “the tester senses voltage.”

That distinction is a practical buying reason. A dark or inactive pen should never be mistaken for a negative result. Klein instructs users to verify operation on a known live circuit before and after every use. If there is no red light or beep, voltage may still be present, so the result is a warning aid rather than permission to touch wiring.

Silent Mode and Four-Minute Auto-Off

The tester can operate in a visual-only silent mode. Starting with the unit off, hold the power button until the green LED appears, then release it. This is useful where repeated tones would be distracting, but the tradeoff is obvious: you must be able to see the LED clearly, and Klein notes that bright light can reduce indicator visibility.

After four minutes without use, the NCVT1P powers off to conserve its two included AAA batteries. That saves attention during storage or between checks, but it also means the green operational light must be reconfirmed before the next test. The pocket clip and compact pen format support everyday carry; they do not change the electrical limits.

Where the 50–1000V AC Range Fits

Klein lists cables, cords, circuit breakers, lighting fixtures, switches, non-tamper-resistant outlets, and wires as intended detection points. The 50–1000V AC range suits common standard-voltage checks, while the CAT IV 1000V classification and 2-meter drop rating describe the tool’s tested design boundaries.

Choose this model when one standard AC range and a clear on/detect interface fit your work. If you need lower-voltage sensitivity, actual voltage measurement, DC testing, or troubleshooting data, choose the appropriate meter or another tester instead. The NCVT1P does not display a voltage value and will not detect DC.

Its Detection Limits Are the Essential Tradeoff

Non-contact detection depends on the electric field reaching the tip and on operating conditions. Klein warns that the tester will not detect a shielded wire or DC voltage. It may also miss voltage when the user is insulated from the tester, the wire is in grounded metal conduit, the source is too far away, the field is blocked, or frequency and environmental conditions fall outside specifications.

Socket design and insulation can also affect detection. Klein specifically says this product is not recommended for tamper-resistant outlets; the company points buyers to NCVT-2P or NCVT-3P in low-voltage mode for that use. Do not choose NCVT1P merely because the tip physically fits near an outlet.

The best fit is a user who understands electrical safety, wants a quick initial AC presence check, and will follow it with the required verification method. It is a poor fit for anyone expecting a no-beep result to prove de-energization, or for work involving DC or low-voltage circuits. Always read the manual, use approved protective equipment, follow local requirements, and stay within the tester’s rating. This assessment is based on manufacturer and exact-listing evidence, not hands-on testing.
