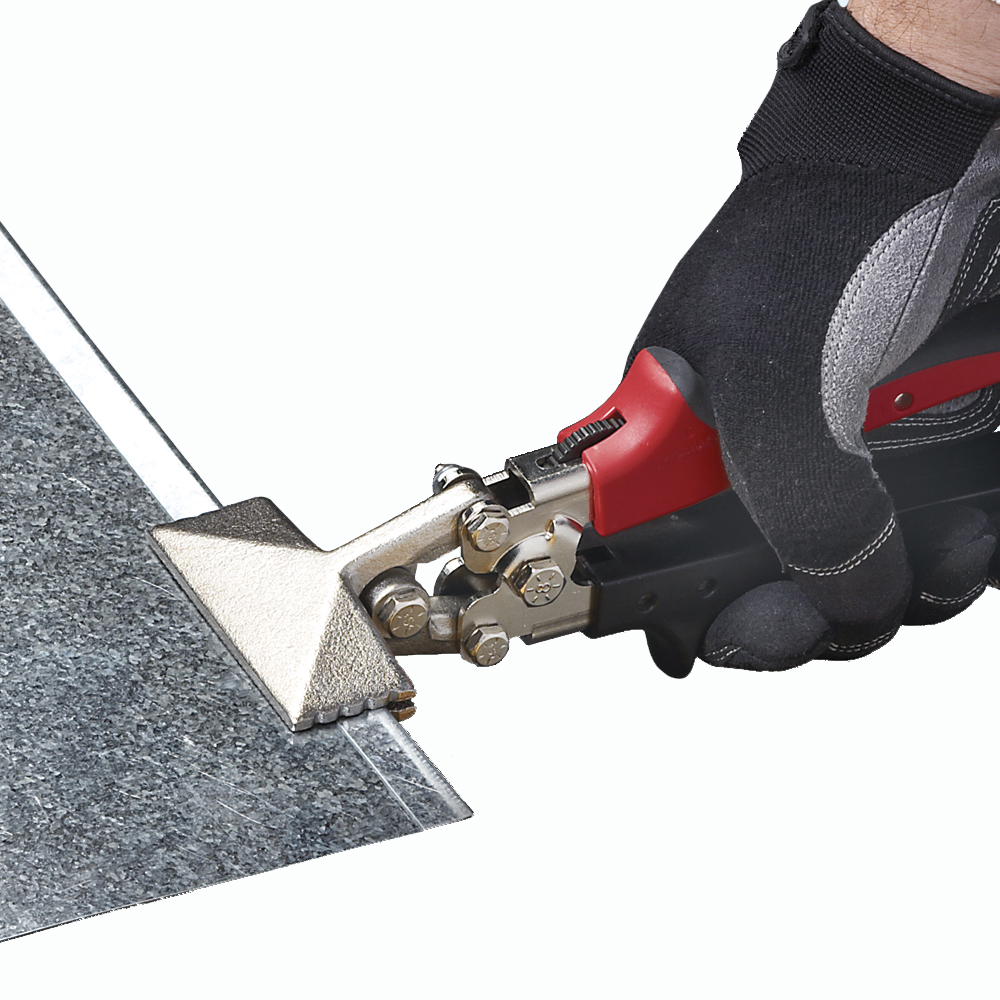

Malco S2R Hand Seamer: Bend 3-Inch Sheet-Metal Edges with 7:1 Leverage

A short flange can look simple until narrow pliers turn it into a row of overlapping bites. Each repositioning creates another chance for the bend line to wander or the edge to ripple. The Malco S2R addresses that specific problem with a broad, straight jaw and a compound-action handle sized for hand-forming compatible sheet metal.

This article covers the exact S2R RedLine 3-inch hand seamer matched to UPC 686046534428 and Amazon child ASIN B005ZDTBE8. It is not the offset-jaw S3R, the wider S6R, a cutting snip, or a brake for long continuous bends.

A 3-inch jaw makes fewer overlapping bites

Malco specifies a 3-inch (76.2 mm) jaw width for the S2R. Covering a wider section of edge with each squeeze reduces the number of placements needed to start a short duct or flashing flange. Fewer overlaps can make the bend line easier to keep visually consistent, especially when compared with working the same edge in small increments with ordinary pliers.

The jaws are drop-forged and have a textured gripping surface. They are designed to bend, form and flatten seams; they do not cut the sheet. Keep the workpiece square to the jaw, begin with a modest bend along the full short edge, and deepen it in controlled passes instead of trying to force a finished angle in one squeeze. For a long straight bend, a sheet-metal brake remains the more repeatable tool.

Depth marks give a repeatable reference

The jaw carries depth markings at 1/4-inch (6.4 mm) increments, extending to the documented 1-1/4-inch (31.8 mm) jaw depth. Those marks help place successive sections of a flange at a similar depth without stopping to measure every bite. That is useful when closing a short seam or turning several matching tabs.

The marks are visual references, not a fence or positive stop. Parallax, sheet movement and hand angle can still change the result, so layout lines and a test bend remain sensible when dimensions matter. The 1-1/4-inch figure is the maximum jaw depth, not a guarantee that every material can be folded cleanly to that depth or to a precise finished angle.

The 7:1 action helps within material limits

Malco lists a 7:1 mechanical advantage, spring-actuated handles and a thumb-operated latch. The compound linkage multiplies hand input while the spring reopens the jaws between squeezes, a useful combination when a job requires many short placements. RedLine handles add a non-slip insert, but gloves are still important around sharp, freshly cut sheet edges.

Capacity depends on the stock. Malco documents up to .035-inch (0.89 mm) aluminum, .023-inch (0.58 mm) copper, 26-gauge/.017-inch (0.46 mm) stainless steel, 24-gauge/.028-inch (0.71 mm) galvanized steel, and 24-gauge/.024-inch (0.61 mm) mild steel. These limits are material-specific: “24 gauge” for galvanized or mild steel must not be carried over to stainless, aluminum or copper. Deburr the edge, wear eye protection, and keep fingers outside the jaw path.

Choose straight access over offset reach

The S2R's straight jaws work well when the handle can approach the edge in line with the bend. If duct walls, overhead work or nearby structure blocks that approach, Malco's S3R offset model may offer a more useful handle position. The S2R also makes less sense when the job demands a long, uniform bend, deeper than 1-1/4 inches, or stock beyond the listed capacity.

Choose the S2R for short duct, flashing and light-fabrication bends where a 3-inch bite, repeatable depth reference and spring-return compound action save repeated repositioning. Skip it when you need cutting, brake-level precision, offset access or a continuous shop-length flange. Its value is controlled hand forming within a clearly defined envelope, not replacing every sheet-metal tool.
