Dremel 4300-5/40 Rotary Tool Kit: Match the Accessory to the Task

A rotary-tool kit is useful when several small finishing jobs need different working ends. The Dremel 4300-5/40 combines a corded rotary tool, variable speed, a three-jaw chuck and a pivoting light with an assortment of attachments and accessories. Start with the work you want to do, then determine which included pieces actually serve it.

This article covers the US 4300-5/40 kit with five attachments and 40 accessories. The purchase is a way to assemble a detail-work routine, rather than a promise that every material and project can be handled by whichever bit happens to be nearest.

Name the job before counting the pieces

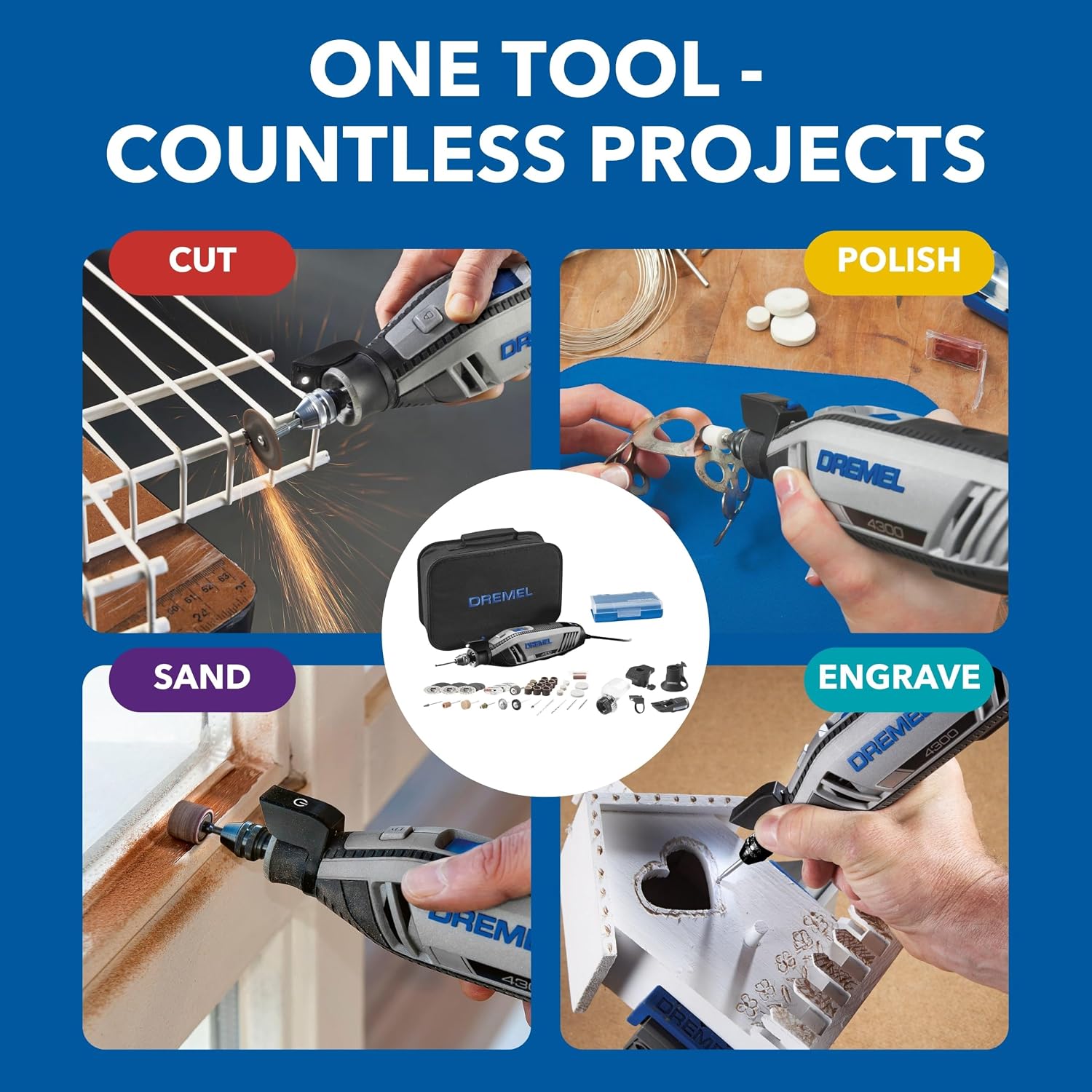

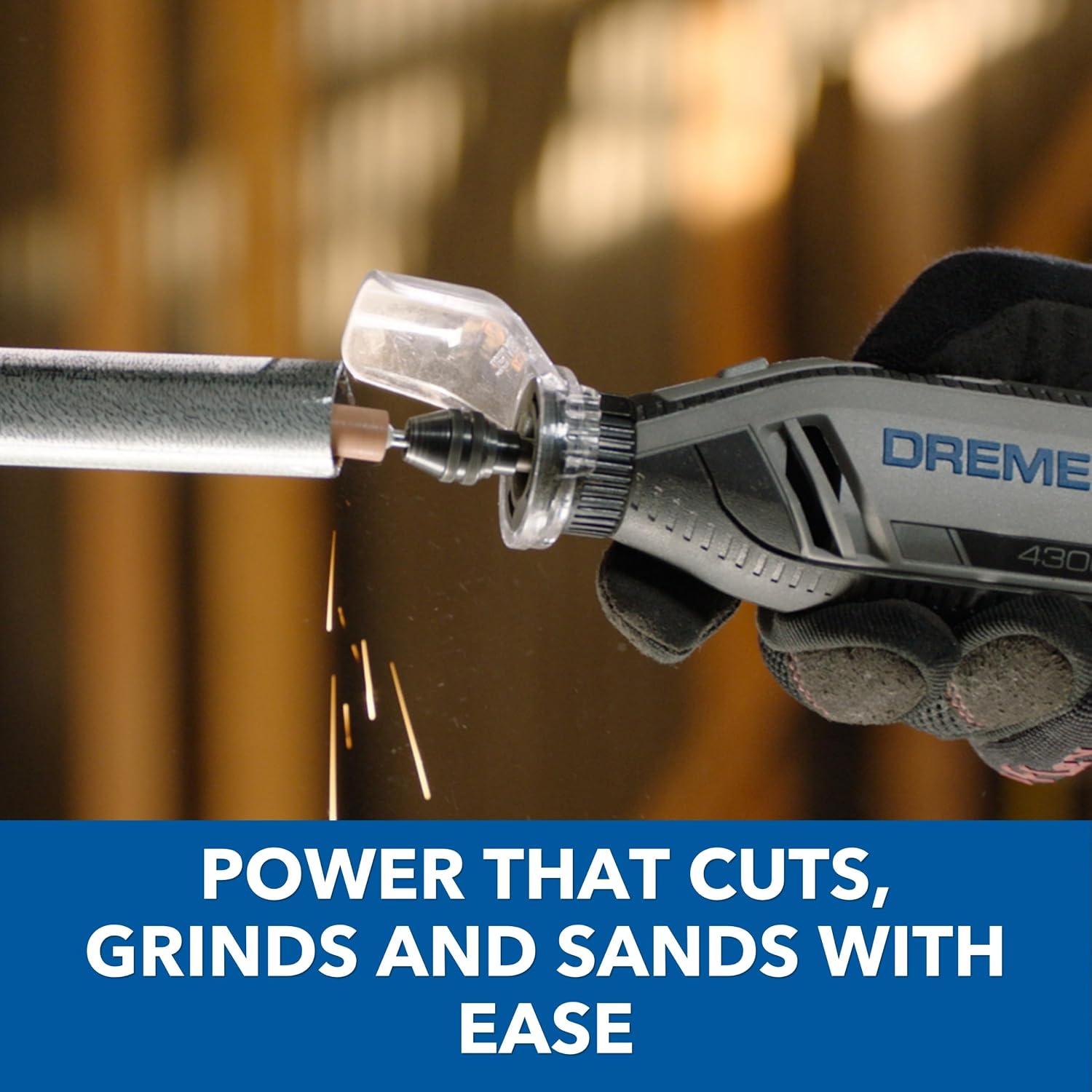

Dremel lists the kit's pivot light, shield, sanding/grinding guide, garden-tool sharpener and multipurpose cutting guide. These have different roles. An attachment changes the working arrangement; an accessory supplies a particular cutting, sanding or other working surface.

The first buying reason is access to several supported task arrangements around one rotary tool. Write down the operations you expect to repeat and compare them with the actual kit list. A large accessory count has little value if most pieces do not match those operations.

The included assortment is a starting selection. Check the correct accessory for your material, its permitted use and the associated instructions. A photograph of a tool performing a task is not evidence that every accessory in the package can do that task.

Plan a stable work area and a way to secure the workpiece. Follow the manual's protection and handling instructions for the chosen operation. The kit does not remove the need to learn a tool that rotates at high speed.

Match the shank and holding arrangement

The three-jaw chuck accepts accessory shanks from 1/32 inch to 1/8 inch, according to Dremel's manual. That is a second buying reason if you regularly change between suitable accessories with different shank sizes.

Shank fit is only one compatibility question. It does not establish that an accessory is suitable for the selected material, speed or side load. Check those requirements before treating the chuck as permission to fit any small working end.

Dremel's manual also discusses using a collet-and-nut arrangement for more precise holding in heavier side-load applications. Read the guidance for the operation rather than assuming one holding arrangement is ideal for every job.

Disconnect the tool from power before changing or adjusting accessories. A convenient change routine still includes securing the accessory correctly and inspecting it before use.

Use speed and light deliberately

The 4300's documented speed range is 5,000 to 35,000 revolutions per minute. The manual provides guidance based on material and accessory. That range gives you choices, but selecting the highest number is not a substitute for selecting the appropriate working conditions.

Use a practice piece as the manufacturer recommends. Establish how the selected accessory behaves before working on the part you want to keep. This article does not measure cut time, finish quality or dimensional accuracy.

The pivoting light provides another useful reason to consider this model when the working point needs illumination. Its position can be adjusted around the front of the tool to suit the task.

The light is a separate module powered by two replaceable CR1025 batteries. The rotary tool itself is corded. Plan general work lighting as well; an onboard LED does not guarantee a clear view from every holding position.

Build a routine you will maintain

The US specification is 120 volts and 1.8 amps. Decide where the tool will connect and where the cord will run before making the kit part of a regular workspace.

Keep accessories identifiable so that choosing a bit does not become a guessing exercise. Follow the manufacturer's cleaning and service instructions, and keep ventilation openings clear during use.

Choose the 4300-5/40 when changing accessories, selecting speed and lighting the working point fit the small jobs you plan to repeat. Consider another tool arrangement when mobility away from an outlet or a larger dedicated operation is the central requirement. The buying value comes from matching the tool and its working end to a real task, then using that combination with the appropriate setup.
