General Tools No. 17 Square-Head Protractor Locks an Angle for Transfer

Trim, a cabinet side, or an existing bracket can present an angle that is easier to copy than to calculate. The General Tools No. 17 ANGLE-IZER combines a square reference head, a pivoting stainless-steel arm, and a bidirectional 0–180-degree scale, so the same compact tool can read an angle and carry it to a saw setup or layout line.

This article covers the square-head No. 17 in General Tools’ official buying link, not the round-head No. 18, plastic No. 29, or a digital angle finder. Its useful promise is limited and mechanical: register the head, align the arm, lock the thumb nut, then transfer the position.

The square head creates a repeatable reference edge

The No. 17 head measures 3-3/8 by 2 inches. Its straight lower edge can sit against a board, machine surface, or other accessible face while the arm follows the adjoining edge. That square profile gives the tool a physical reference where a loose semicircular school protractor would be awkward to hold.

The head still needs clean, full contact. A rounded molding, heavy paint ridge, burr, or obstructing fastener can tip it away from the true surface. Hold the reference edge flat, bring the pivot close to the corner, and check that neither part is bridging debris before treating the scale as the workpiece angle.

A 6-inch arm reads in either direction

General Tools specifies a 6-inch adjustable arm and a semicircular scale from 0 to 180 degrees in forward and reverse directions. The two number sequences let the scale be read from either orientation instead of forcing the workpiece to face one way. Deeply etched graduations are intended to remain legible rather than relying on surface ink alone.

That range does not turn the No. 17 into a precision metrology instrument. The manufacturer does not publish an accuracy tolerance or a finer vernier scale for this model, so the article does not assign either one. Choose the correct number sequence, look squarely at the index to reduce parallax, and use a digital or certified precision instrument when the allowed error must be quantified.

The thumb nut preserves an angle for the next mark

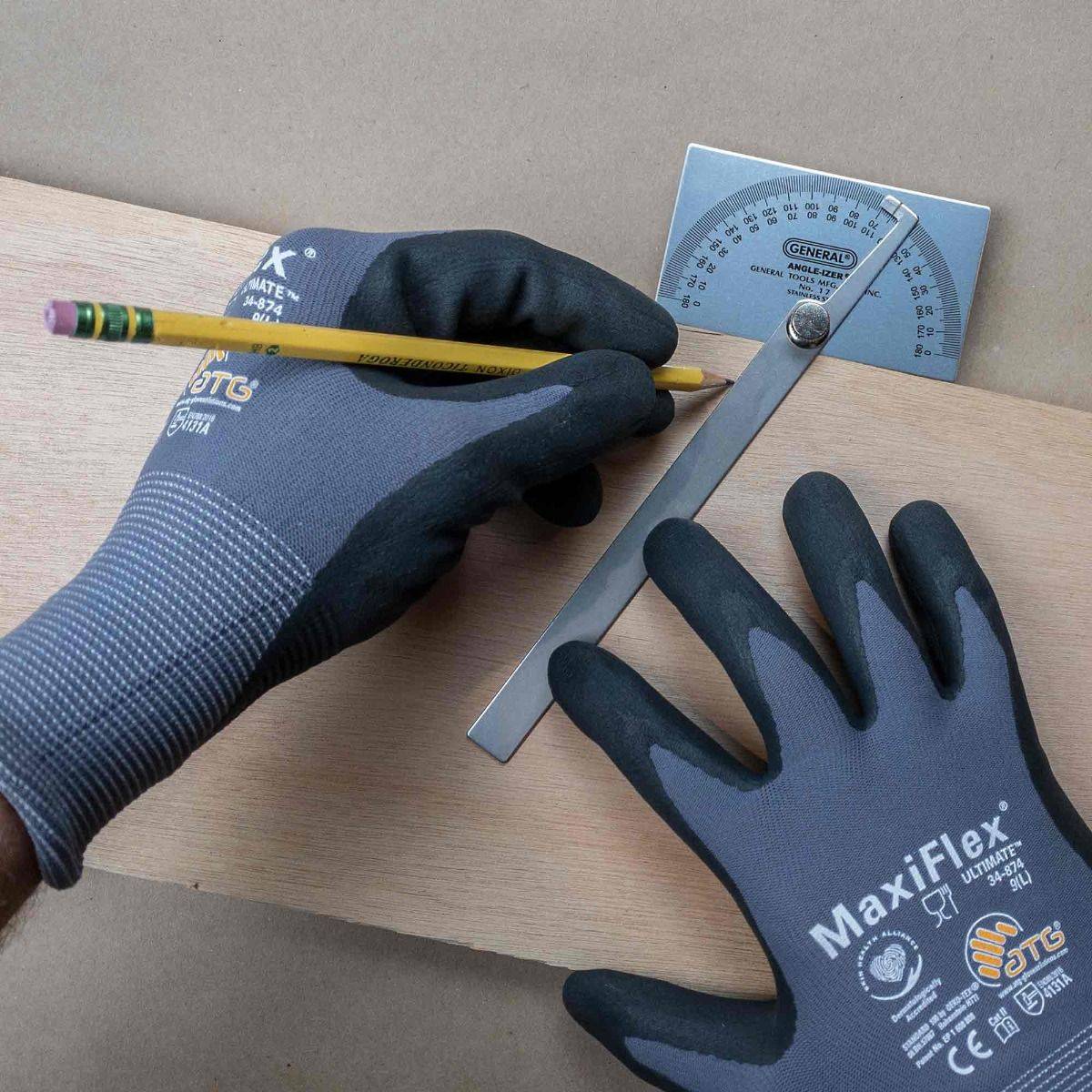

Once the arm matches the adjoining face, the knurled thumb nut locks the pivot. This is the strongest buying reason for a layout workflow: the tool can move away from an awkward corner while preserving the relationship between head and arm. It can then set a bevel, guide a pencil line, or compare another part without asking you to remember a reading and recreate it from scratch.

Locking also introduces a practical check. Tighten the nut while holding both references in place, then lift the tool and confirm that the arm did not shift. The lock resists ordinary handling; it is not a clamp for forcing stock, a cutting guide, or a torque-rated joint. If the arm moves after tightening, reset the angle instead of pressing harder against the work.

Stainless steel is durable, but the tool has boundaries

The head and arm are stainless steel, which General Tools selects for strength, precision, and resistance to rust. The thin arm can reach along an edge without the bulk of a digital housing, and the entirely manual design needs no battery, zeroing routine, display, or app.

Those advantages come with tradeoffs. There is no illuminated readout, hold button, magnetic base, spirit level, or automatic calculation of miter and bevel settings. The exposed etched scale must be viewed clearly, and stainless steel can still be scratched, bent, or affected by poor storage. The official page also carries a California Proposition 65 warning for nickel exposure; buyers who work under those requirements should review the notice before purchase.

Choose the General Tools No. 17 when the job is to measure or copy accessible angles, set a bevel, and transfer a locked position with a simple 6-inch mechanical tool. Skip it for hidden corners, curved reference faces, compound-angle calculation, quantified high-precision inspection, or tasks that require a digital display. Its value is not electronic convenience but continuity: one square head establishes the reference, one arm follows the angle, and one thumb nut keeps that geometry intact for the next line.
