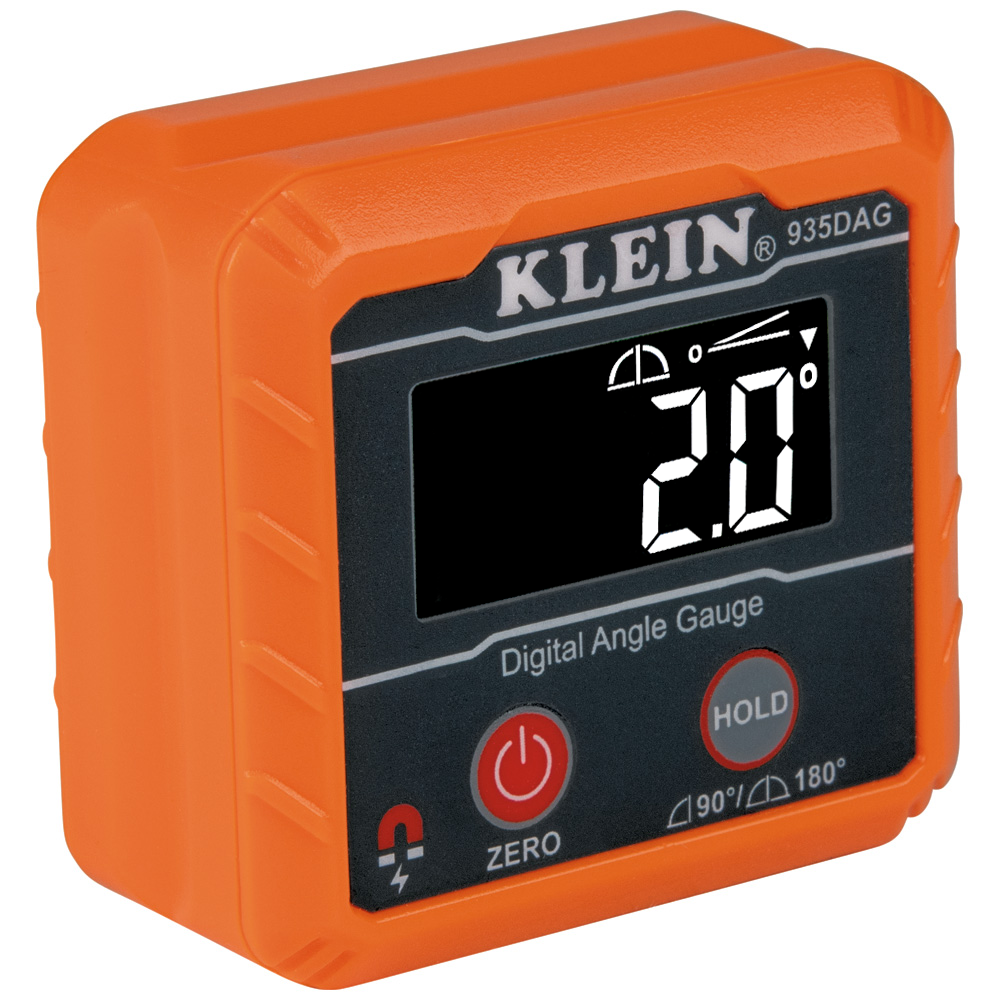

Klein Tools 935DAG Magnetic Angle Gauge Holds to Steel for Hands-Free Readings

An angle reading is hard to trust when the gauge slides on a saw blade, sits crooked across conduit, or has to be removed before the number can be read. The Klein Tools 935DAG is built around that practical problem. Its rare-earth magnetic base holds to ferromagnetic work, V-grooves center the compact body on round material, and a reverse-contrast display shows the angle without a long level spanning the job.

This is the pocket-size 935DAG Digital Angle Gauge and Level, not the larger 935DAGL programmable level or the newer 935DAA with colored alerts. It measures true level or a user-set relative angle in either a 0–90-degree or 0–180-degree display range. It does not project a laser line, calculate compound cuts, or replace careful machine setup.

The magnetic base keeps the reading on the work

The strongest everyday advantage is that the gauge can stay attached while the surface moves. Klein specifies a permanent rare-earth magnet in the base, so the 935DAG can sit on a steel table-saw blade, metal conduit, pipe, duct, electrical panel, or other ferromagnetic surface. That leaves both hands available to adjust the work and lets the display update in place.

V-grooves run around the perimeter to help the flat-sided body follow the axis of conduit and pipe instead of rocking on one contact point.

The attachment is material-dependent. The magnet does not hold to aluminum, wood, plastic, stainless grades that are not magnetic, or painted surfaces with too large a gap. On those jobs, the user must hold or support the gauge and confirm that its base is fully seated.

Zero and hold make relative setup easier to repeat

Pressing ZERO establishes the current surface as a reference plane. New readings then show the change from that reference rather than the offset from true level. This is useful when matching an existing slope, checking a second piece against the first, or setting a saw blade relative to a table that has already been verified.

HOLD freezes a measurement on the screen. That matters when the gauge is mounted where the display cannot be read directly: capture the value, remove the tool, and inspect the retained number.

Relative zero does not correct a bad reference. If the starting surface is twisted, dirty, or not the plane the project should follow, every relative reading inherits that error. Klein also provides a two-position recalibration routine in the manual; calibration and reference zero are different operations and should not be treated as interchangeable.

Two ranges and clear cues reduce mental conversion

A long press on HOLD/RANGE switches the display between 0–90 and 0–180 degrees. The 90-degree range is convenient when only the size of the tilt matters, while the 180-degree range preserves direction across a wider rotation. An inclination icon shows which way the gauge must rotate to reach 0 or 90 degrees, and the display automatically rotates when the body is upside down.

Klein rates accuracy at ±0.1 degree near 0, 90, and 180 degrees, and ±0.2 degree at other angles when measuring from the magnetic base. Those figures suit setup and checking, but a rough surface is not a precision reference. Clean the base, repeat the reading, and use a square or calibration standard for critical work.

Pocket size comes with clear environmental limits

The 935DAG measures about 2.36 by 2.20 by 1.20 inches and weighs 3.5 ounces with its two AAA batteries. A soft case is included, and the device turns itself off after ten minutes of inactivity. Its IP42 rating means limited resistance to dust and dripping water; it is not waterproof or sealed for wet outdoor work.

The manual specifies operation and storage from 32 to 122 degrees Fahrenheit and below 85 percent relative humidity. It also warns that a forward or backward tilt of 30 degrees prevents an accurate reading and triggers an error. The strong magnetic field calls for care around magnet-sensitive equipment, and approved eye protection remains necessary around cutting or bending work.

Choose the 935DAG when the recurring job is checking level, matching a slope, or setting an angle on steel work with a compact display that can remain attached. Skip it when the surface is nonmagnetic, the environment is wet, an audible target alert or dual-axis reading is essential, or the setup needs a longer physical reference rather than a pocket gauge.
